Lifting Type Glass Beveling Machine Manufacturer

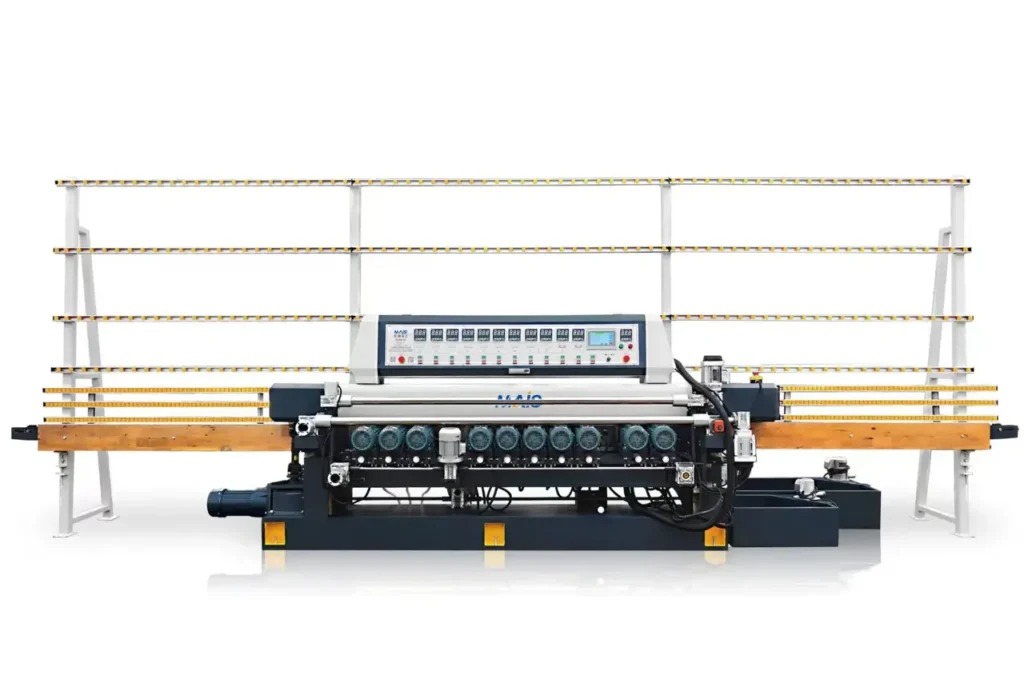

Lifting Type Glass beveling machine (MAIS XM361)

This machine is suitable for mass grinding of the bevel and bottom edges of flat glass. The coarse grinding, fine grinding, polishing of the bevel edge, and grinding of the bottom edge are all completed in one process. The front and rear clamping plates are made of forged parts, and the middle insert strip is made of 40Cr material for maximum wear resistance. The grinding head motor uses internationally renowned brands, making it a practical beveling machine built with genuine and high-quality materials.

Compared with ordinary glass bevelling machine, this machine can change the difference between the front and rear rails by lifting and lowering the front guide rail to achieve the effect of expanding the size range of grinding glass and processing specifications, which has the advantages of high lifting and lowering precision, strong rigidity, stable performance and high yield rate.

Key Features

4 core advantages

Product Description

1.Equipped with a high-precision straight edge motor, making glass cutting as easy as cutting through mud;
2.Overload protection circuit ensures the safety of the grinding head motor;
3.If there is an unprocessed height at the bottom of the glass, you can set it through “reservation”, which is very convenient;Both front and rear pressure plates undergo a special grinding process, preventing uneven thickness or broken glass when grinding thin glassIf there is an unprocessed height at the bottom of the glass, you can set it through “reservation”, which is very convenient;
4.Infinitely variable speed adjustment allows for a wide range and smooth speed transitions;

5.When adjusting for different thicknesses, the front beam digital display can be used as a reference;
6.The front chamfer motor moves synchronously with the front beam;
7.The uniquely streamlined control box is modern and up-to-date;
8.The protective cover and electric box frame have undergone processes such as acid washing, phosphating, and high-temperature baking paint, keeping the machine shiny and new;
9.The grinding head water tank is made of high-quality stainless steel, with edges processed through a special technique to prevent injuries;
10.The solid cast base and large front and rear beams ensure the machine remains durable and resistant to deformation even in areas with significant temperature changes.
11.This equipment has an advanced structure, innovative and reasonable design, easy operation, and high work efficiency, making it an excellent choice for architectural glass, decorative glass, furniture and appliance glass, bathroom mirrors, glass counters, coffee tables, frameless glass doors, and other glass processing applications.

Technical Parameters:

Number of grinding heads	10pcs	Material input speed	0.7~3.5m/min
Maximum bevelled edge width	40mm(General)	Thickness of glass processing	3~12mm
Height of working table	750mm	External dimension	700012002500mm
Total wattage	24KW	Power supply	380V/50Hz/3P
Minimum processing size	50*50mm	Weight	3800KG
Bevel angle	0-27°	Maximum processing size	2440*3660mm

Grinding Wheel Configuration

No. 1 beveled edge wheel	No. 2 beveled edge wheel	No. 3 beveled edge wheel	No. 4 beveled edge wheel	No. 5 beveled edge wheel	No. 6 beveled edge wheel	No. 7 beveled edge wheel	No. 8 beveled edge wheel	No. 9 beveled edge wheel	No. 10 beveled edge wheel
Diamond Wheel	Diamond Wheel	Diamond Wheel	Resin wheel	Resin wheel	Resin wheel	Cork wheel	Woolen wheel	Woolen wheel	Woolen wheel

The type and number of grinding heads can be adjusted according to customer requirements.

Core Component Options

CNC system

Simple operation, low requirements for operators; easy to operate

Grinding head motor

The grinding head motor of this product adopts the products of the World Famous Brand Shanghai CDQC Electric Co. To cope with the harsh environment of deep glass processing, the motor adopts a combination of contact and non-contact sealing structure, which ensures the motor’s processing accuracy, rigidity, protection and life.

Relays

This product adopts the French Schneider relays, Schneider relay has no mechanical parts, by the solid device to complete the contact function, there is no moving parts, so it can work in a high shock, vibration environment, long life, high reliability.

Chassis beam

Chassis beams are all castings, and after high temperature annealing treatment and precision grinding machine processing, with rock-solid quality and durability.

Effect display

Finished products with different bevel widths and bevel angles.

Maintenance of edge grinding machine

1. After starting and stopping the machine every day, the operator should do routine checking, including whether the grinding wheel is loose, the degree of wear and tear, whether the circulating water is clean, etc. When grinding different thicknesses of glass, test grinding must be carried out. When grinding different thicknesses of glass, test grinding must be carried out.
2. The grinding wheel should be checked, adjusted and corrected every day. The circulating pipe should be kept unobstructed. Should be done to change the water. In order to avoid the water tank dirt caused by the water pipe blockage.
3. When changing water, please unplug the power supply first, then take out the water tank, pour out the waste water, and clean the powder scale in the water tank and on the filter.
4. Glass grinding machine chain, gear, screw, etc. to keep regular filling lubricating grease.
5. Suspend the use, should keep the surrounding environment of the glass grinding machine dry, the equipment shell should be diligent with a rag to wipe, so that it is not easy to rust.
6. Timely inspection class machinery of the activities of the parts of the gap is large, is conducive to maintaining the precision of the processed parts.
7. In the glass edge grinding machine processing small piece of glass must pay attention to the clamping plate is flat, to ensure that the small glass is smoothly clamped.
8. Induction transmission, turbo box should be regularly filled with oil. To prevent wear and tear of internal transmission parts. Note: The residual oil should be discharged before refilling the oil.

How Our Customers Put MAIS To Work

Glass beveling machines are used in various industries

Manufacturing requirements?

As a factory-direct manufacturer, we provide competitive pricing, flexible custom configurations, and reliable long-term performance—making this machine ideal for decorative, architectural, and furniture glass processing factories.
