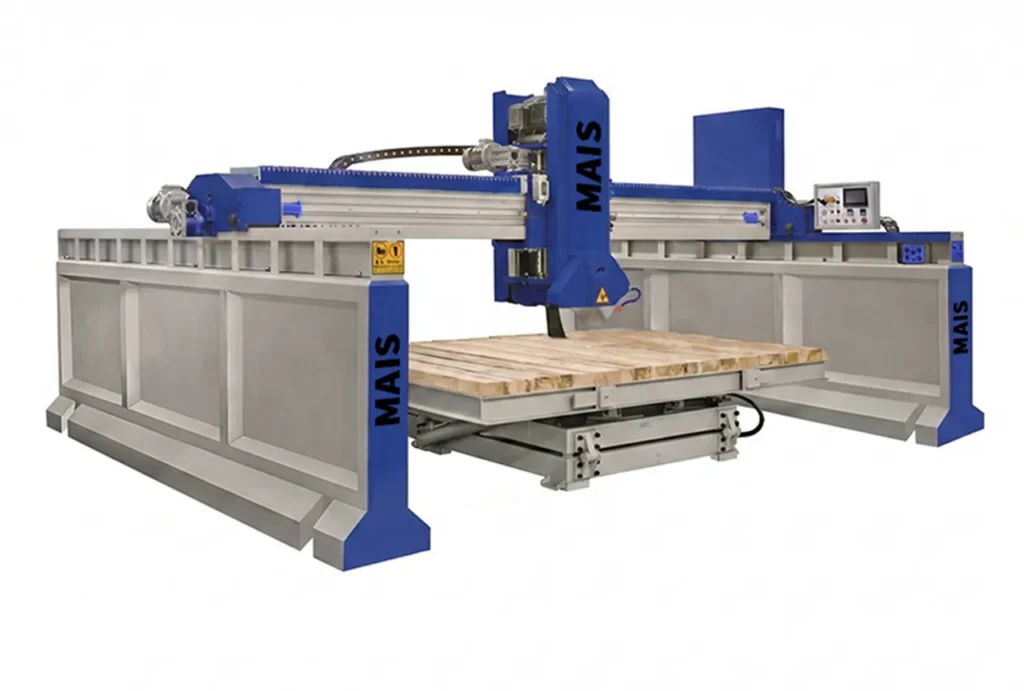

Infrared Bridge Type Stone Cutting Machine

Product introduction:

Standard with 0-90 workbench, 0-85 degree flap, mainly used to cut high-precision specification board.

Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.

Technical Parameters:

Type / Parameter	MAIS 450A	MAIS 600A	MAIS 700A	MAIS 800A
Max. Working dimensions (L×W×H)	3200×2000×100 mm	3200×2000×180 mm	3200×2000×240 mm	3200×2000×280 mm
Blade diameter	Φ350-Φ450 mm	Φ350-Φ600 mm	Φ350-Φ700 mm	Φ500-Φ800 mm
Max. Lifting stroke	230 mm	380 mm	480 mm	580 mm
Worktable size (L×W)	3200×2000 mm
Worktable turnover degree	0-85°
Power of main motor	15 kW	18.5 kW	18.5 kW	18.5 kW
Total power	21 kW	24.5 kW	24.5 kW	24.5 kW
Water consumption	4 m³/h	4 m³/h	4.5 m³/h	4.5 m³/h
Dimension (L×W×H)	6000×4800×3000 mm	6000×4800×3200 mm	6000×5000×3400 mm	6000×5000×3600 mm
Total weight	5400 kg	5600 kg	5800 kg	6000 kg

Effect display

The amount of sand output can be fine-tuned, the surface of the processed object is uniform, and the processing speed is fast. Automatic dust removal achieves better dust removal effects, and the workload is equivalent to the sandblasting workload of 50-80 skilled workers.
