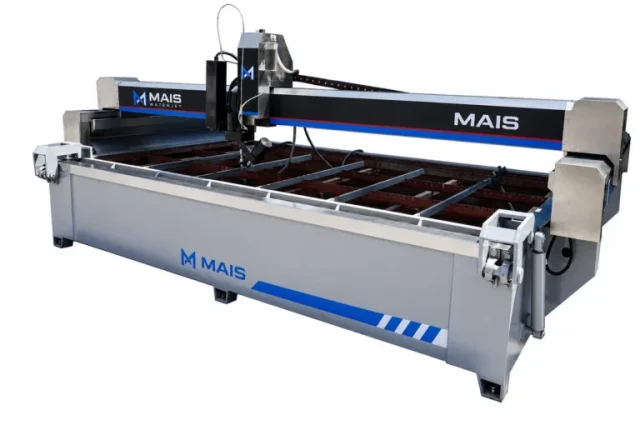

3-Axis Water Jet Cutting Machine
MAIS 3-Axis Water Jet Cutting Machine is a practical CNC waterjet solution for flat cutting, holes, curves, signs, panels and irregular shapes on stone, glass, ceramic, metal, aluminum and composite materials.
- Rated pressure: 65,000 psi, Working Pressure: 1,500–62,000 psi
- X/Y/Z CNC structure for accurate 2D flat cutting
- Suitable for stone, glass, ceramic, metal and composite materials
- Custom cutting table size from compact to large-format workpieces
- Cold cutting without heat deformation or burning
- Stable abrasive delivery for hard material cutting
- Cost-effective choice before upgrading to 5-axis waterjet
+/-0.1 mm
Cutting Accuracy
450 MPa
Rated Pressure
3-Axis
X / Y / Z CNC Cutting
When You Need Clean Flat Cutting Without Heat Damage
For many workshops, the real need is not advanced 5-axis bevel cutting. It is stable, accurate and flexible flat cutting across different materials with lower investment and easier operation.
Heat-Sensitive Materials
Waterjet cutting avoids burning, discoloration, hardening and thermal deformation caused by heat-based cutting methods.
Brittle Material Cracking
Suitable for glass, ceramic, marble, granite and sintered stone where edge quality and crack control matter.
Irregular Shape Orders
Cut holes, arcs, curves, logos, signs, sink openings and custom 2D profiles directly from drawings.
Mixed Material Production
One 3-axis waterjet can handle stone, glass, metal, ceramic, rubber, plastic and composite materials.
What Is a 3-Axis Water Jet Cutting Machine?
A 3-axis waterjet cutting machine uses X-axis, Y-axis and Z-axis motion to cut flat sheets, plates and slabs. It is mainly used for 2D cutting tasks such as straight lines, curves, holes, patterns and irregular shapes.
- X-axis and Y-axis control the cutting path on the table.
- Z-axis controls cutting head height above the material.
- Abrasive waterjet cutting is used for hard materials such as stone, glass, ceramic and metal.
- Pure water cutting can be used for softer materials, depending on the application.
- It is the most practical entry-level CNC waterjet solution for many workshops.
Built for Practical Cutting Accuracy, Lower Investment and Easy Operation
The 3-axis waterjet is ideal for buyers who need reliable CNC flat cutting without the additional cost and complexity of 5-axis motion.
Accurate Flat Cutting
Cut straight lines, curves, holes, panels, signs, gaskets, patterns and custom 2D profiles with CNC-controlled movement.
No Heat-Affected Zone
Waterjet cutting helps protect material structure and surface appearance because it does not rely on thermal cutting.
Stable Abrasive Cutting
Stable abrasive feeding supports cutting hard materials such as stone, glass, ceramic, stainless steel and aluminum.
3-Axis vs AB 5-Axis vs AC 5-Axis Waterjet
Choose 3-axis for flat cutting and general 2D shapes. Upgrade to 5-axis only when bevel cutting, taper compensation or advanced angle cutting is required.
| Machine Type | Best For | Main Advantage | Recommended Buyer |
|---|---|---|---|
| 3-Axis Water Jet Cutting Machine | Flat cutting, holes, arcs, signs, panels, gaskets and general 2D parts | Lower investment, easier operation and practical maintenance | Workshops mainly cutting flat materials without bevel requirements |
| AB 5-Axis Water Jet Cutting Machine | Bevel cutting, chamfering and taper compensation | Practical 5-axis capability with controlled investment | Factories needing regular angle cutting on stone, ceramic or metal |
| AC 5-Axis Waterjet Cutting Machine | Complex bevels, 3D contours, curved edges and advanced angle cutting | Higher cutting freedom for complex geometry and CAD/CAM workflows | Factories requiring advanced 5-axis flexibility and complex toolpaths |
Cut Stone, Glass, Metal, Ceramic and Composite Materials with One Machine
3-axis waterjet cutting is especially useful for workshops that receive different material orders and need flexible CNC flat cutting capability.
Stone & Tile
For marble, granite, quartz, ceramic tile, porcelain slab, sintered stone, sink holes and decorative patterns.
Glass
For flat glass, laminated glass, decorative glass, custom shapes, holes and irregular profiles.
Metal & Aluminum
For stainless steel, aluminum, copper, brass, carbon steel and industrial metal plates.
Rubber & Composite
For rubber gaskets, foam, plastic sheets, composite panels and non-metallic industrial materials.
Where 3-Axis Waterjet Creates More Value
3-axis waterjet is recommended when you need flexible flat cutting across different materials and shapes.
Stone, Tile and Countertop Cutting
Cut sink holes, arcs, curves, decorative patterns, stone inlays, ceramic panels and irregular slab shapes.
Metal Sheet and Plate Cutting
Cut stainless steel, aluminum, copper, brass and carbon steel without heat distortion or thermal damage.
Glass and Brittle Material Cutting
Cut glass shapes, holes, curves, laminated glass and brittle panels with controlled CNC cutting paths.
3-Axis Water Jet Cutting Machine Specifications and Model Options
Final specifications should be confirmed according to your material, cutting thickness, required accuracy, table size and production target.
| Item | Reference Specification | Why It Matters |
|---|---|---|
| Machine Type | 3-Axis CNC Water Jet Cutting Machine | Suitable for flat cutting, holes, curves, signs, panels and irregular 2D shapes. |
| Axis Structure | X / Y / Z | Simple CNC motion structure for easier operation and lower maintenance complexity. |
| Cutting Accuracy | +/-0.1 mm reference value | Actual accuracy depends on material, thickness, speed, abrasive, pressure and setup. |
| Repeated Positioning Accuracy | +/-0.05 mm reference value | Supports repeatability for batch cutting and repeated part production. |
| Maximum Running Speed | 6-8 m/min reference value | Machine speed should be balanced with cutting quality and material thickness. |
| Rated / Working Pressure | 450 MPa / 10-430 MPa | Pressure should be selected according to material and edge quality requirement. |
| Power Supply | 220 / 380 / 415 V | Voltage can be configured according to local electrical standards. |
| Cutting Method | Pure water / Abrasive waterjet | Pure water is used for soft materials; abrasive waterjet is used for hard materials. |
| Model | Work Area | Machine Dimensions | Weight |
|---|---|---|---|
| 1515 | 1.5 x 1.5 m | 2730 x 2050 x 2150 mm | 3 T |
| 2015 | 2.0 x 1.5 m | 3020 x 2050 x 2150 mm | 3.5 T |
| 2515 | 2.5 x 1.5 m | 3730 x 2050 x 2150 mm | 4 T |
| 3020 | 3.0 x 2.0 m | 4230 x 3130 x 2150 mm | 5.5 T |
| 4020 | 4.0 x 2.0 m | 5230 x 3130 x 2150 mm | 6.5 T |
A Complete 3-Axis Waterjet Cutting System
Cutting quality depends on the full system, not only the table. MAIS can configure the complete 3-axis waterjet around your material, thickness and production requirement.
CNC X/Y/Z Cutting Table
Provides precise flat cutting movement for sheets, plates, slabs and irregular 2D shapes.
High-Pressure Pump
Configured according to material thickness, cutting speed and edge quality requirement.
Cutting Head & Nozzle
Maintains stable waterjet output through the selected orifice, mixing tube and nozzle system.
Abrasive Delivery System
Feeds abrasive continuously for stone, glass, ceramic, metal and other hard materials.
CNC Control System
Controls cutting path, speed, start/stop, trajectory simulation and breakpoint continuation.
Motion Structure
Stable guide rail and drive structure help maintain cutting accuracy during long working hours.
Water Tank & Waste Removal
Collects water and abrasive, reduces splash and supports cleaner workshop operation.
Optional Accessories
Optional chiller, height sensor, automatic lubrication, cutting software and spare parts package.
When Should You Choose a 3-Axis Waterjet?
A 3-axis machine is often the most rational choice when your production is mainly flat cutting and does not require bevel or 3D cutting.
| Your Requirement | Recommended Choice | Reason |
|---|---|---|
| Flat cutting, holes, arcs, signs and simple irregular shapes | 3-Axis Waterjet | Lower cost, simpler operation and enough capability for standard 2D parts. |
| Mixed stone, glass, metal and ceramic orders | 3-Axis Abrasive Waterjet | One system can process many hard materials with abrasive cutting. |
| Bevel cutting, chamfering or taper compensation | AB 5-Axis Waterjet | 5-axis head movement is more suitable for angle cutting. |
| Complex bevels, 3D contours or advanced CAD/CAM cutting | AC 5-Axis Waterjet | AC structure provides higher cutting freedom for advanced geometry. |
| Special table size, private label or distributor cooperation | OEM Waterjet Solution | Structure, color, logo, voltage, pump and accessories can be customized. |
Configure the 3-Axis Waterjet Around Your Material and Workshop
Different buyers need different table sizes, pump pressure, abrasive systems, voltage standards, machine colors and spare parts packages. MAIS helps confirm the right configuration before quotation.
- Custom cutting table size and machine structure
- Optional high-pressure pump configuration
- Abrasive system, water tank and waste removal options
- Voltage, machine color, logo and nameplate customization
- Spare parts package, manuals and operator training support
- OEM cooperation for distributors and regional partners
From Cutting Requirement to 3-Axis Waterjet Configuration
Send your material, size, thickness, cutting drawings and country. MAIS will recommend the suitable 3-axis waterjet configuration.
Send Material Information
Tell us whether you cut stone, glass, ceramic, metal, aluminum, rubber, plastic or composite materials.
Confirm Cutting Size
Share maximum material size, thickness, part shape, drawing file and expected cutting quality.
Select Table Size
MAIS helps confirm whether 1515, 2015, 2515, 3020, 4020 or a custom size is suitable.
Configure Machine System
Confirm pump, cutting head, abrasive system, CNC controller, voltage and spare parts.
Receive Quotation
Get a quotation based on machine model, configuration and destination country.
Production & Support
MAIS provides production coordination, delivery support, installation guidance and after-sales service.
FAQ About 3-Axis Water Jet Cutting Machine
What is a 3-axis water jet cutting machine used for?
A 3-axis waterjet cutting machine is used for flat cutting, holes, arcs, curves, signs, panels, gaskets and irregular 2D shapes on stone, glass, ceramic, metal, aluminum and composite materials.
What is the difference between 3-axis and 5-axis waterjet?
A 3-axis waterjet mainly cuts vertically on flat materials. A 5-axis waterjet adds cutting head angle movement for bevel cutting, taper compensation and more complex angle cutting.
Can a 3-axis waterjet cut metal?
Yes. With abrasive waterjet cutting, a 3-axis waterjet can cut stainless steel, aluminum, copper, brass, carbon steel and other metal materials, depending on thickness and configuration.
Can a 3-axis waterjet cut glass and stone?
Yes. It is suitable for glass, marble, granite, quartz, ceramic, sintered stone and other brittle or hard materials when matched with the right abrasive, pressure and cutting parameters.
Which table size should I choose?
Choose the table size according to your largest material size and workshop layout. Common options include 1515, 2015, 2515, 3020 and 4020, and custom table sizes can also be discussed.
What information should I provide before requesting a quote?
Please provide material type, maximum material size, cutting thickness, target application, required accuracy, destination country, voltage requirement and drawings or sample photos if available.
