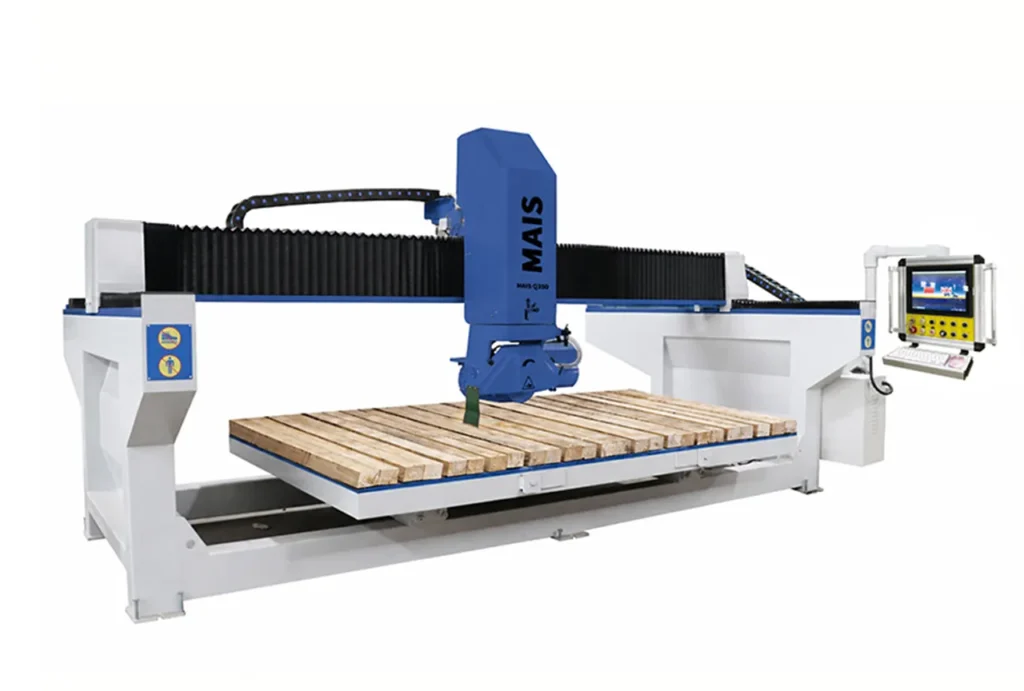

5 Axis Sintered Stone Slab Bridge Saw
This series of models are suitable for slab, tile, marble, artificial stone, granite, cement products and other building materials of special-shaped edge or multi-function cutting, is the most suitable for special-shaped cutting factory deep processing equipment .
5 Axis Sintered Stone Slab Bridge Saw
- Small floor area: only 15 square meters (length 5 meters x width 3 meters).
- Simple operation: touch mode man-machine interface, module parameterized input, no programming,intuitive operation,handy.
- High configuration: the main core control components using international line brand components,stable performance, long life.
- High precision: all motion pairs adopt high precision linear guide rail, with high precision helical gear transmission, high precision.
- Intelligent all motion pairs adopt automatic grease lubrication, escort tor motion pair.
- Energy saving and consumption reduction: permanent magnet synchronous main motor is optional, which usually saves 30% electricity than three-phase asynchronous motor
- Craftsmanship manufacturing: every detail of the design and manufacturing so that you can feel carefully crafted, excellence excellent quality!
- MAIS Q350G: Automatic cutting specification board + four sided chamfering + any side chamfering ( optional )+ Plane slotting ( drawing )+ drawing grid + stove top +( polygon ) Basin hole + polygon + trapezoid + diamond + sector + outer circle + Oval + horse belly edge + straigMAIS line imitation + Round hole ( optional )+ elliptical hole ( optional )+ Ellipse ( optional )+ Arc line copying ( optional )+ Drill hole ( optional )...
Technical Parameters:
| Parameter | MAIS Q350G (Five-axis multi-function type) |
|---|---|
| Blade diameter | 250–350 mm |
| Worktable size | 3200×2000 mm |
| Max. cutting size | 3200×2000×50 mm |
| Max. chamfer size | 3000×1800×50 mm |
| Saw blade horizontal rotation angle | 0–360° |
| Chamfer orientation (Optional) | 0–90–180–270° / 0–360° |
| Saw blade inclination angle (Optional) | 0–45° / 0–90° |
| Turnover angle of worktable | 0–85° |
| Rotation angle of worktable (Optional) | Default: None |
| Main motor power | 15 kW |
| Host frequency conversion | Optional |
| Total power | 25.5 kW |
| Water consumption | 3.5 m³/h |
| Gross weight | 4000 kg |
| Overall dimensions | 5000×3000×2750 mm |
Function display
