MAIS-4020-AC-5G
AC 5-Axis WaterJet Cutting Machine
Integrated in a three-axis platform, it can realize two-dimensional (2D) plane and three-dimensional (3D) processing of workpieces, and has the advantages of one-time processing and high efficiency. Suitable for metal, glass, stone and other material cutting industries.

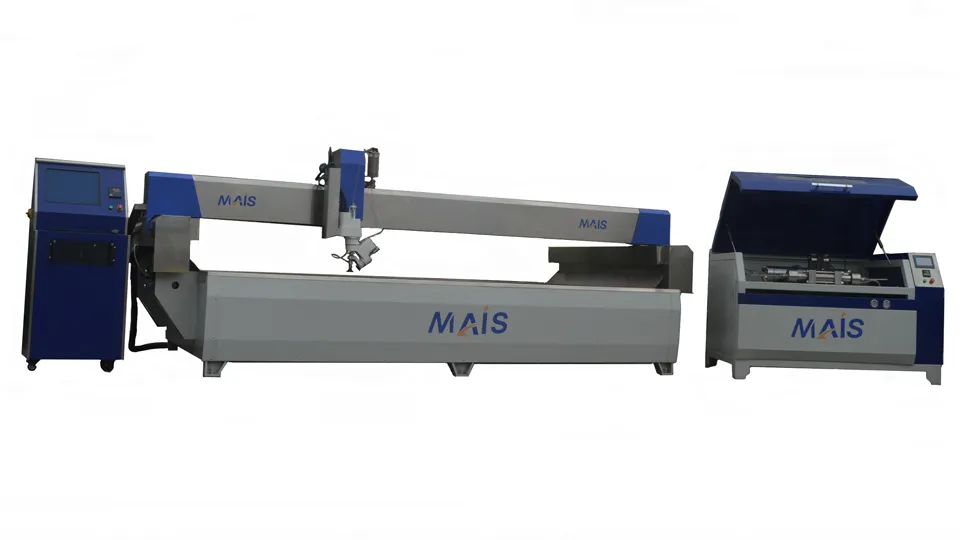

AC 5-axis waterjet cutting machine(MAIS-4020-AC-5G )
Used for various metals, non-metals, and composite materials: titanium, molybdenum, tantalum, tungsten, chromium, aluminum, stainless steel, copper plate, alloy, carbon structural steel, stone, glass, ceramics, rock plate, rubber, engineering plastics, etc.
Key Features
Specially designed for harsh environments and expected goals, an ideal combination of size, speed and accuracy.
01.
02.
03.
04.
General Specifcations
Equipment specifications
Model: MAI-4020
Working size (mm): 4000*2000
( MPA) Rated pressure: 450
Working pressure: 10-380
Appearance size(mm): 5230*3130*2150
Equipment Accuracy
| A-axis rotation angle, power | ±59°/ 0.2KW |
| C-axis rotation angle, power | 360°/0.2KW |
| Rotation axis positioning accuracy | ±0.01mm |
| Rotation axis maximum speed | 10R/Min |
| Fixed point cutting accuracy | ±0.01mm |
| cutting accuracy | ±0.1mm (cutting tolerance of 0.2mm when the material remains undistorted). |
Best for these Applications
Change materials at any time to meet customer needs, MAIS water jet cutting machines can get your job done.
Ceramic Tile
Marble, granite, artificial stone, ceramic tiles, ceramic panels
Precision Hardware
Steel, iron, aluminum, stainless steel, etc.
Glass
Flat glass, laminated glass, tempered glass, etc.
COMPOSITES
Plywood, MDF, solid wood, etc.
How Our Customers Put MAIS To Work
Waterjet cutting machines are essential in many industries for their efficiency, precision, environmental friendliness, and safety.
Learn about MAIS’s special customization services
R&D, production, installation, after-sales, training, integrated services
