Glass Washing Machine (MAIS X1600 )

Glass washing machine (MAIS X1600 )

This machine is suitable for automatic cleaning and drying of glass and lenses of different thicknesses. It adopts horizontal transmission and 6 sponges to absorb dryness; it adopts a strong hot air drying system for drying, the temperature is automatically controlled and freely set, and the transmission speed can be adjusted fast or slow.

Key Features

Specially designed for harsh environments and expected goals, an ideal combination of size, speed and accuracy.

01. Brush roller

The brush roller of the cleaning part is driven by an independent belt of the motor. It uses high-quality acid-resistant, alkali-resistant and high-temperature-resistant brushes, which have good cleaning effect and long service life

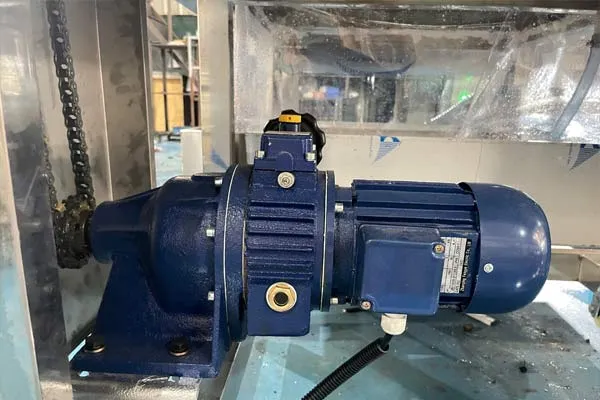

02. Transmission system

The transmission system is adopted, and the frequency conversion speed regulation can be directly operated on the panel to adjust the cleaning speed at will.

Glass-washing-machine-transmission-system

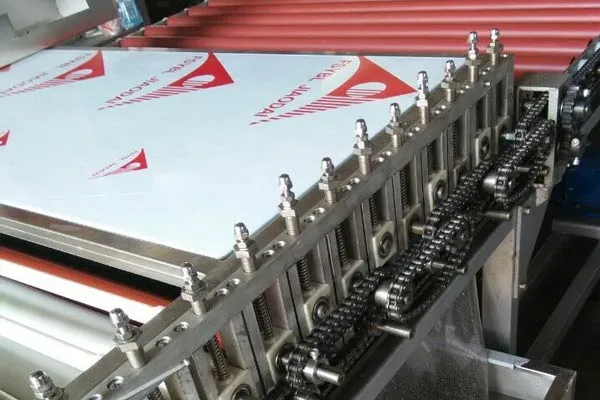

03. Transmission surface

The high-quality conveying rubber rollers are densely arranged, which can process glass of different sizes. Combined with gear transmission, the transmission is more stable.

04. Air drying system

The cleaning and air drying system can automatically clean and dry glass of different thicknesses, clean with brushes, dry with high-quality sponge rollers, and dry with hot air at one time.

General Specifcations

Product introduction:

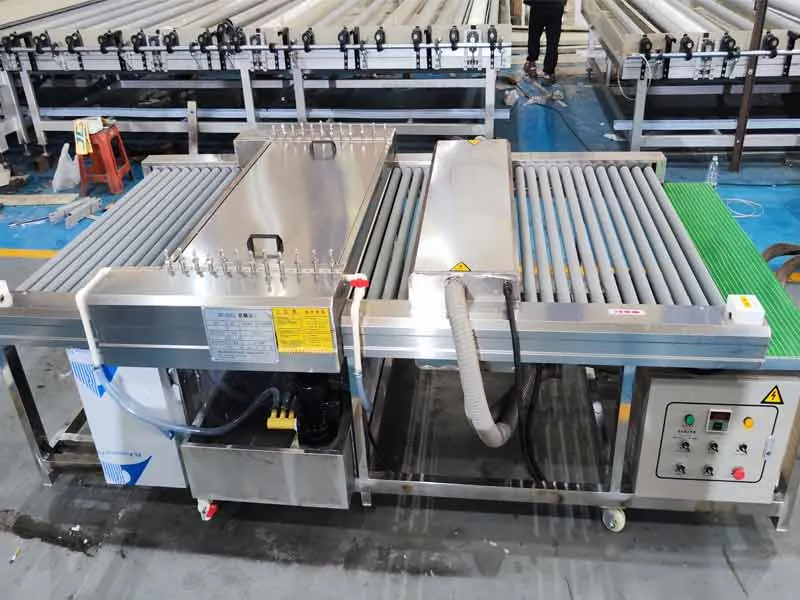

The overall structure consists of four sections: inlet section, air drying section, cleaning section, and outlet section.
The rest of the sheet metal parts are all made of stainless steel
8 brush rollers and 6 sponge rollers
The conveying rubber roller of the whole machine adopts vulcanized rubber and rubber-coated structure (contact with acidic liquid is strictly prohibited)
The water in the water tank circulates automatically.
The transmission motor is stepless transmission with stable speed. Longer service life.

Specifications & Technical parameters

Model	MAIS X1600	Glass transmission speed	0.5-4m/min
Maximum glass width	1550*2000mm	Glass processing thickness	3～15mm
Minimum glass size	200*200mm	Overall machine size	400020001100mm
Voltage	380V/ 50Hz/3P	Weight	1000kg
Total power	10kw	Transmission	Stepless speed regulation
Conveyor table height	820mm	Conveyor table height	820mm

This machine is a special machine for cleaning and washing flat glass. It uses multiple sets of brush rollers, relative roller brushes and disc brushes for washing, and uses high-pressure centrifugal fans for strong air drying. It has complete specifications, traditional and classic design, high efficiency and stable performance.
