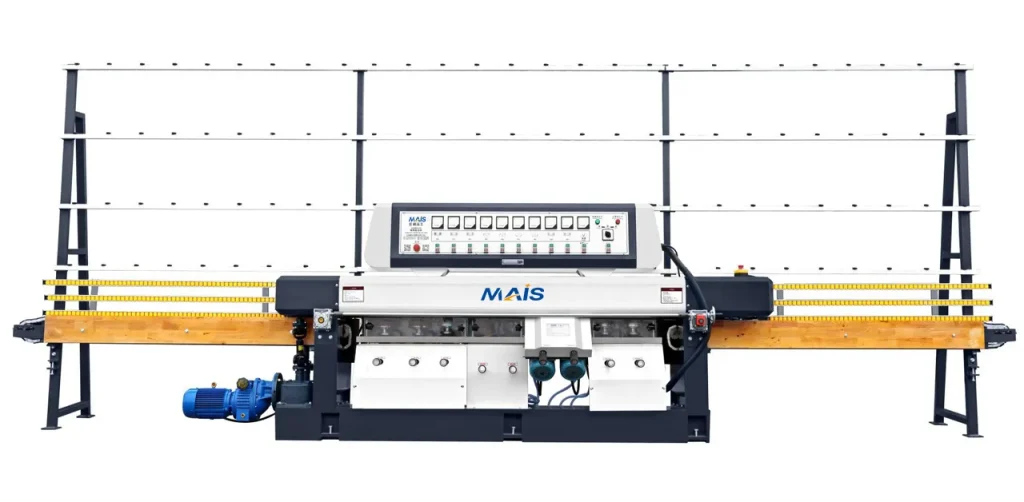

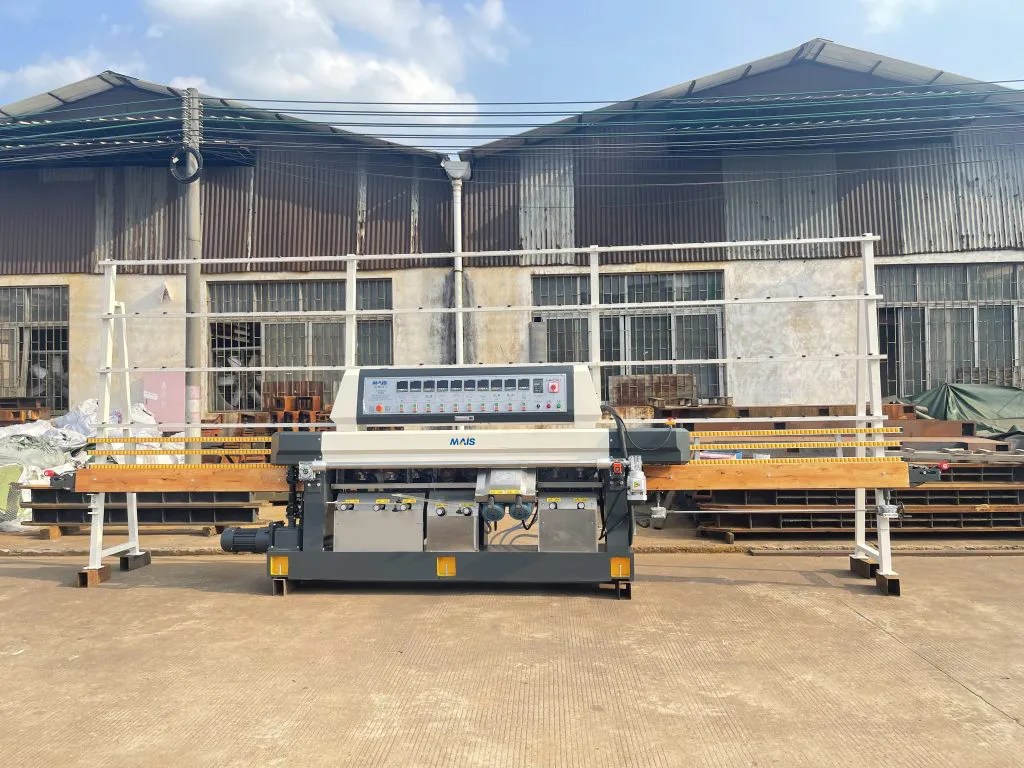

Straight Glass Edge Grinding Machine (MAIS zM 9325)
Straight Glass Edge Grinding Machine supports grinding and polishing of straight edges, bottom edges, and other edges of flat glass. The surface is polished to near the original smoothness of the glass matrix. Featuring digital thickness adjustment and synchronized movement, it ensures high precision, easy operation, and continuous processing, making it an ideal machine for deep glass processing.
Straight Glass Edge Grinding Machine (MAIS zM 9325)

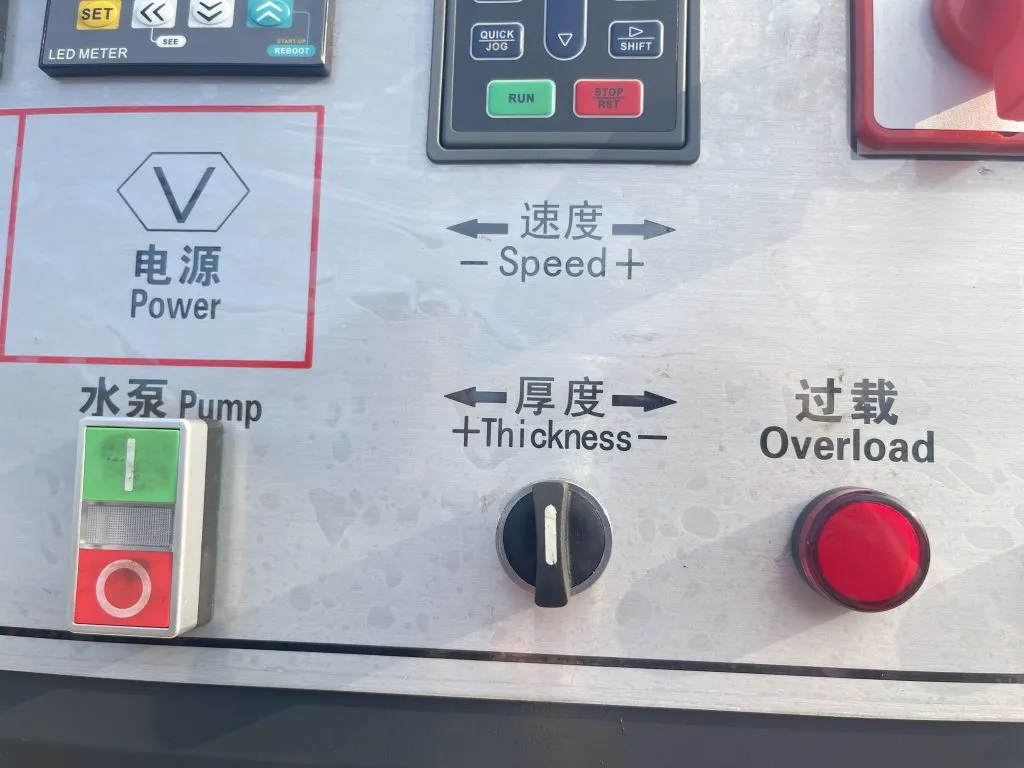

The glass straight edge machine is suitable for grinding the straight edges, bottom edges, and edges of flat glass of different sizes and thicknesses. Coarse and fine grinding and polishing are completed in one go, and the polished surface is close to the smoothness of the glass matrix. When adjusting different processing thicknesses (can refer to the digital display table on the front beam for adjustment), the front chamfer grinding head can move synchronously with the front beam, with advanced structure; The advantages of high precision, easy operation, and continuous processing of the same thickness make it an essential processing equipment for glass deep processing.
Key Features
Specially designed for harsh environments and expected goals, an ideal combination of size, speed and accuracy.

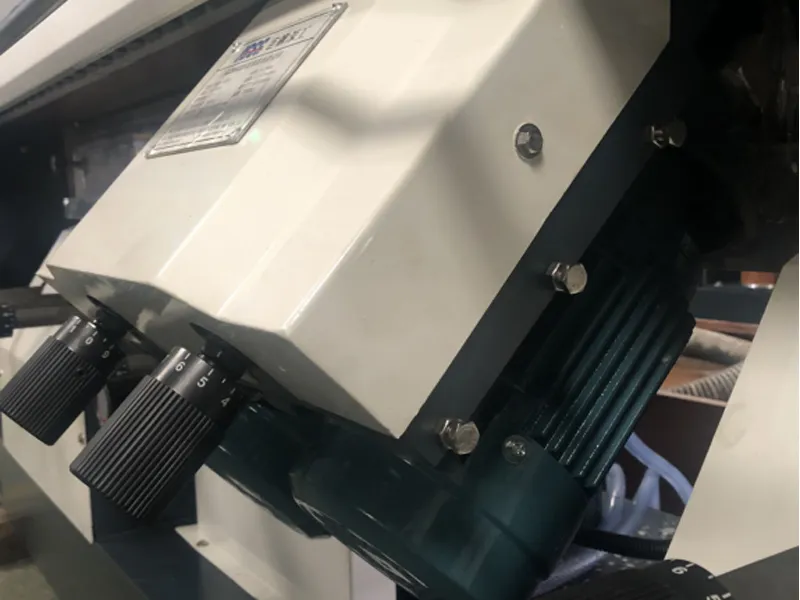

01. Simple operation:
The front beam chamfer motor moves synchronously with the front beam, and when the glass becomes thicker or thinner, there is no need to readjust the chamfer width.

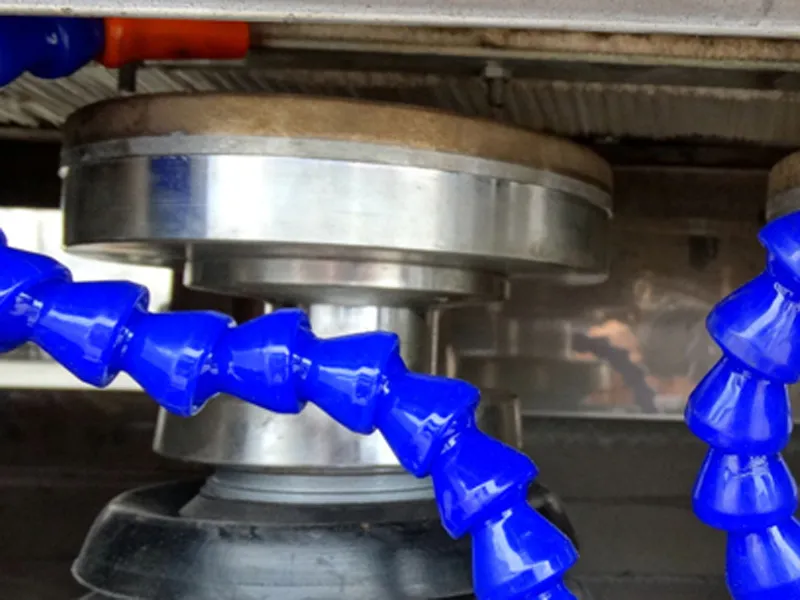

02. Grinding head water tank:
High quality stainless steel is used, and the edges of the stainless steel are processed with special techniques, which will not harm people.

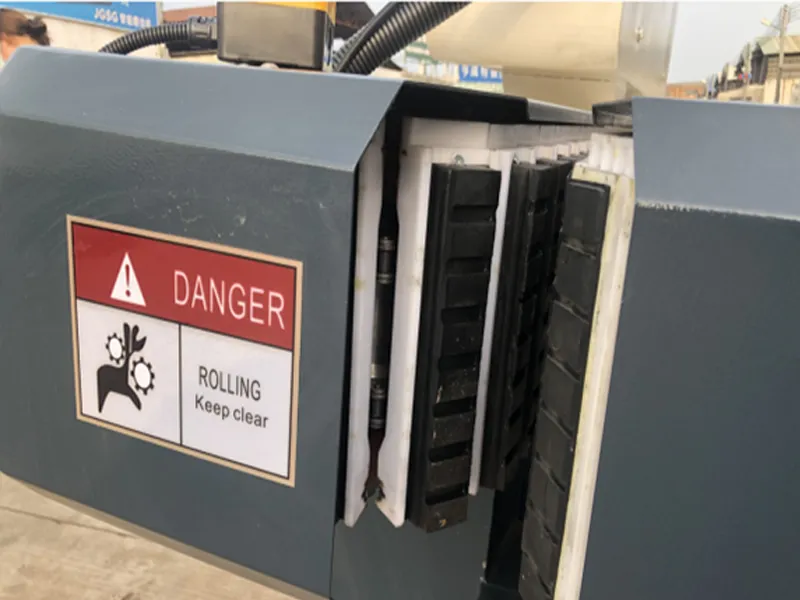

03. Pressure plate:
special grinding machine technology, which will not cause uneven chamfering, size, and head movement when grinding long glass

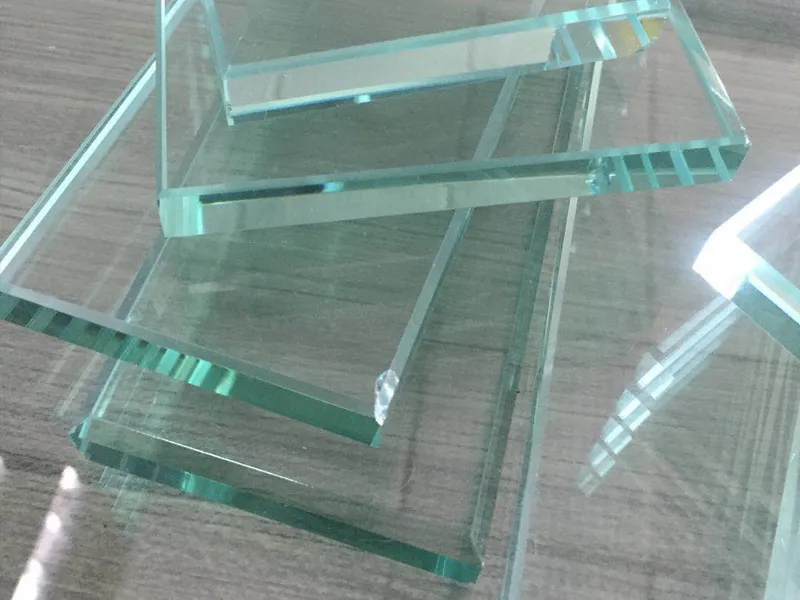

04. Reducing production costs:
The glass straight edge machine performs high-precision processing on glass, which can reduce the scrap rate and save raw materials.
General Specifcations
Working principle
- 1.The surface is covered with abrasive. The speed of the grinding disc and the selection of abrasives can be adjusted as needed.
- 2.The clamping device usually includes clamping claws or vacuum suction cups to ensure that the glass plate remains stable during the processing.
- 3.The transmission system usually consists of an electric motor, a transmission belt, and a transmission wheel.
- 4.To prevent glass overheating and reduce friction heat during grinding, the glass edging machine is equipped with a cooling system.
Technical Parameters:
| Working voltage/frequency | 380V/50HZ 3P | Minimum size of glass | 80X80 mm |
| Bevel Width | 0mm-3mm | Maximum size for glass | 2440 mm X3660 mm |
| Glass processing thickness | 3～25mm | Maximum grinding amount | 2.5mm |
| Conveying speed | 0.7-7 m/min | Total power | 19.75 Kw |
| Grinding head motor specifications | 380V/50Hz | Grinding head motor power | 1.5kw～2.2kw |
| Drive motor | 2.2KW | Workbench height | 750mm |
Model Specifications
| Technical parameters | PS25LA |
| Workbench height | 750mm |
| Footprint (mm) | 7000 mm×1200 mm×2500mm |
| Total power | 19.75 Kw |
| Weight | 3000kg |
How Our Customers Put MAIS To Work
Advantages of glass straight edge machine

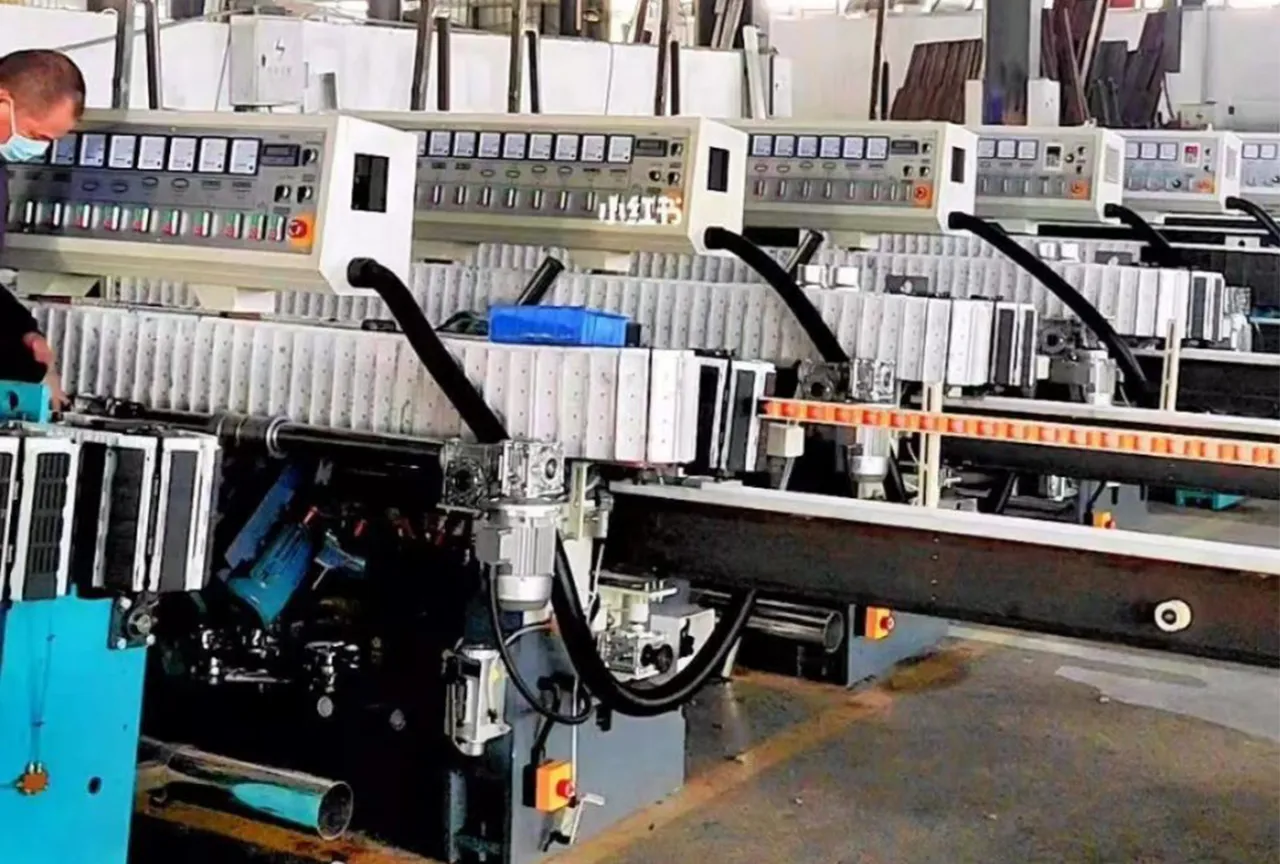

Improve glass processing efficiency
The traditional glass processing method requires manual trimming of edges and corners, which is time-consuming and labor-intensive, and inefficient. The glass straight edge machine, on the other hand, uses electric methods for edge trimming, with a very fast processing speed, which can greatly improve the efficiency of glass processing.
Improve product quality
The glass straight edge machine adopts computer numerical control technology, which can process with high precision. The trimmed edge is flat and smooth, without defects or scratches, which can greatly improve the quality and transparency of the product.
Reduce production costs
Traditional manual processing methods require a lot of time and labor costs, while glass edge machines can quickly and efficiently complete processing tasks, thereby reducing production costs. In addition, due to the high-precision processing of glass by the glass edge machine, the scrap rate can be reduced and raw materials can be saved.
Manufacturing requirements?
As a factory-direct manufacturer, we offer competitive pricing, flexible custom configurations, and reliable long-term performance—making this machine suitable for both small workshops and large-scale glass processing lines.
