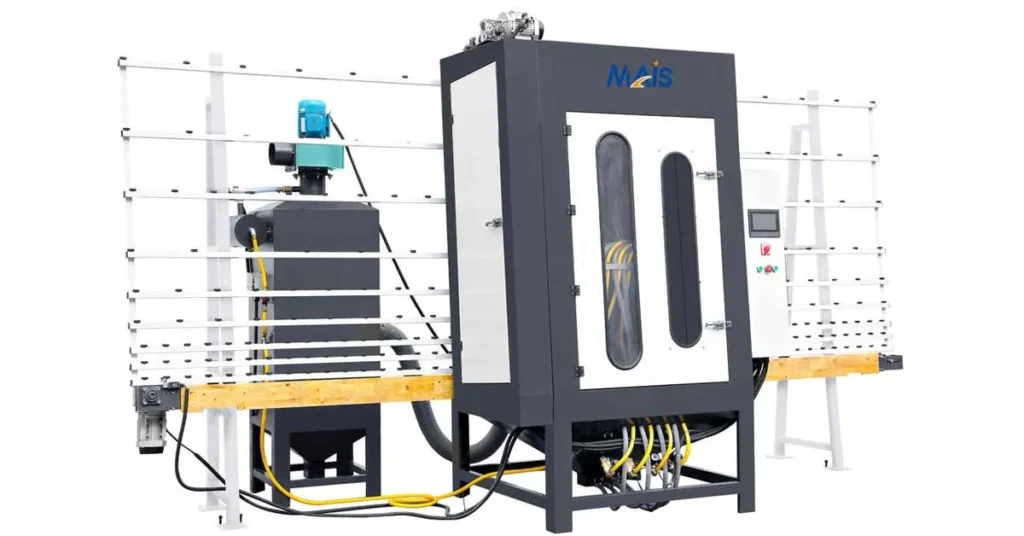

Glass Sandblasting Machine

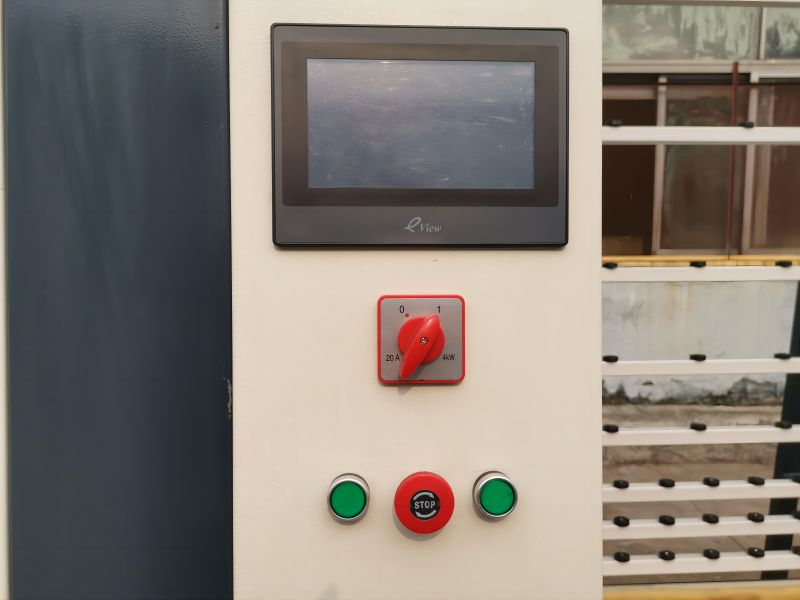

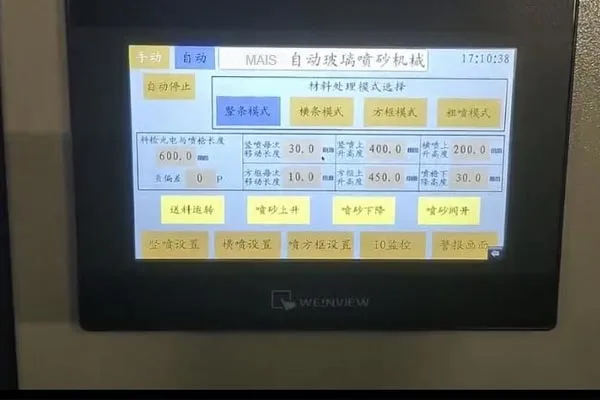

The glass sandblasting machine adopts touch screen operation and special material nozzles. The equipment has both full automatic and manual functions, and is equipped with 4 automatic spray guns and 1 manual spray gun. The lifting of the spray gun and the conveying of the glass are driven by synchronous belts, and the transmission is stable and durable; the spray gun lifting device is located outside the machine body, and the failure rate is low.
Key Features
Specially designed for harsh environments and expected goals, an ideal combination of size, speed and accuracy.
01. Simple operation
The requirements for operators are relatively low, and the sandblasting depth can be controlled by the number and width; mirrors and painted glass can also be added at one time.
02. Easy maintenance

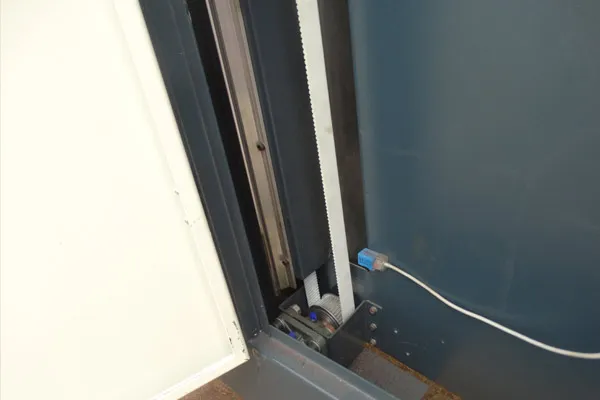

It adopts synchronous belt transmission, and the spray gun lifting system is outside the machine body, which is not prone to failure.

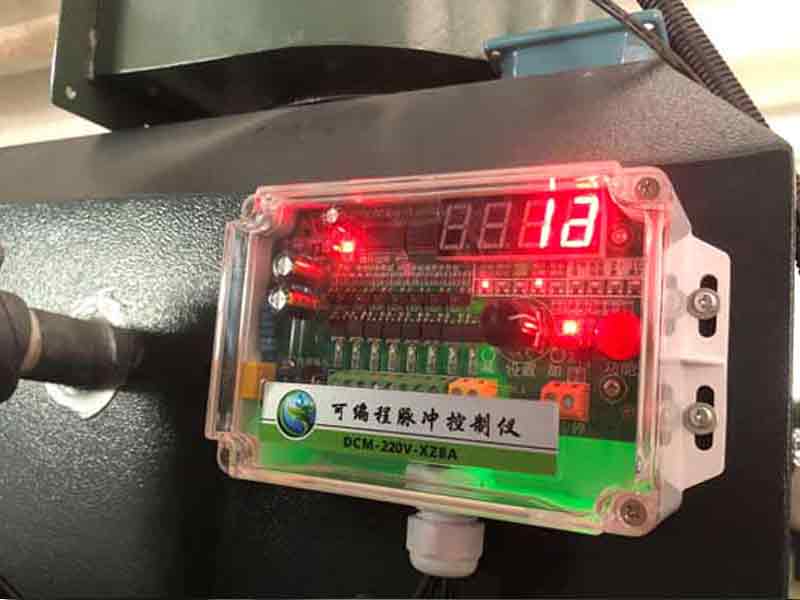

03. Pulse dust removal
Regularly clean the dust accumulated on the filter element, which can be cleaned directly by pressing a button.
04. Ideal effect

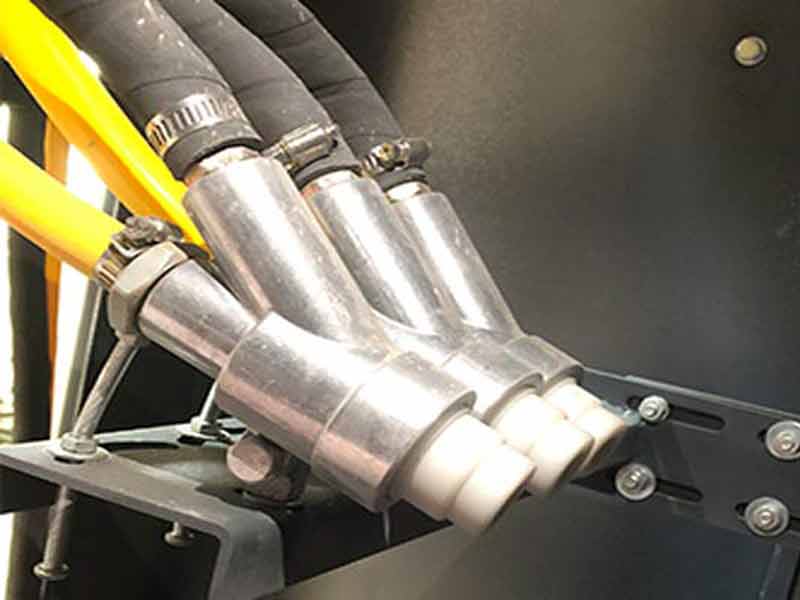

Special nozzle, with both automatic and manual functions. The lifting of the spray gun and the conveying of the glass are all driven by synchronous belts, which are stable and durable. The effect is ideal.
General Specifcations
Product introduction:
- 1.Simple operation, low requirements for operators; not easy to shut down;
- 2.You only need to enter the sandblasting height and the width of the glass moving up and down at one time;
- 3.If there is an unprocessed height at the bottom of the glass, you can set it through “reservation”, which is very convenient;
- 4.The sandblasting depth can also be controlled by the number of pieces and width; mirrors and painted glass can also be added at one time.
Technical Parameters:
Glass Sandblasting Machine (MAIS PS 25 LA)
| Automatic spray gun | 4pcs | Lifting motor power | 0.37KW |

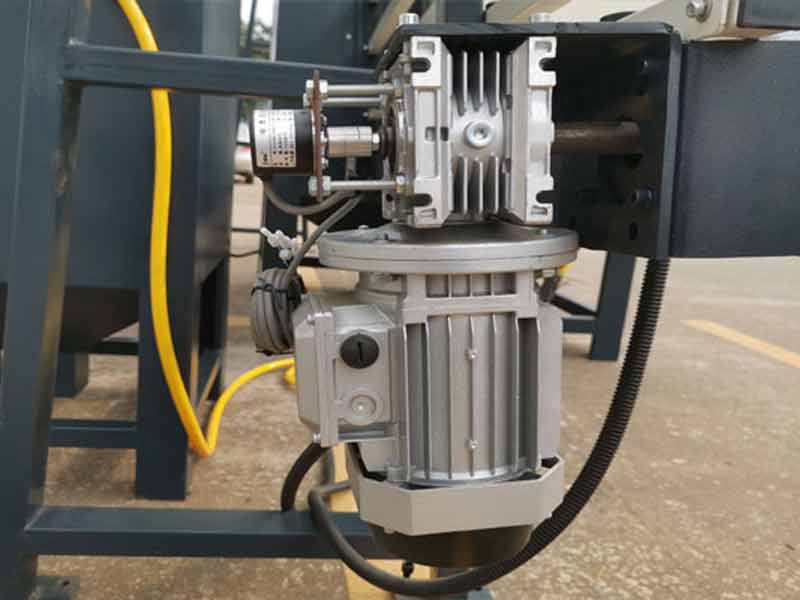

| Manual spray gun | 1pc | Transmission motor power | 0.37KW |
| Spray gun nozzle inner diameter | 8mm | Dust removal fan power | 1.1KW |
| Spray gun lifting speed | 5m/min | Dust removal method | Drum filter element |
| Glass conveying speed | 5m/min | Filter bag cleaning method | Pulse |
| Work efficiency | 20m²/h | Working air source pressure | 0.6-0.8MPA |
| Conveying synchronous belt width | 30mm | Working air source flow rate | ≥ 3m³/min |
| Lifting synchronous belt width | 30mm | Total power | 1.9KW |
| Minimum glass size | 300mm | Processing glass thickness | 3-20mm |
Model Specifications
| Technical parameters | PS25LA |
| Max sandblasting height | 2500mm |
| Footprint (mm) | 6800x1500x3300 |
| Total power | 3.5Kw |
| Weight | 1200Kg |
Glass Sandblasting Machine (MAIS PS 20 LA)
| Automatic spray gun | 4pcs | Lifting motor power | 0.37KW |
| Manual spray gun | 1pc | Transmission motor power | 0.37KW |
| Spray gun nozzle inner diameter | 8mm | Dust removal fan power | 1.1KW |
| Spray gun lifting speed | 5m/min | Dust removal method | Drum filter element |
| Glass conveying speed | 5m/min | Filter bag cleaning method | Pulse |
| Work efficiency | 20m²/h | Working air source pressure | 0.6-0.8MPA |
| Conveying synchronous belt width | 30mm | Working air source flow rate | ≥ 3m³/min |
| Lifting synchronous belt width | 30mm | Total power | 1.9KW |
| Minimum glass size | 300mm | Processing glass thickness | 3-20mm |
Model Specifications
| Technical parameters | PS20LA |
| Max sandblasting height | 2000mm |
| Footprint (mm) | 6800x1500x2800 |
| Total power | 3.5Kw |
| Weight | 1100Kg |
Glass Sandblasting Machine (PS 16 LA)
| Automatic spray gun | 4pcs | Lifting motor power | 0.37KW |
| Manual spray gun | 1pc | Transmission motor power | 0.37KW |
| Spray gun nozzle inner diameter | 8mm | Dust removal fan power | 1.1KW |
| Spray gun lifting speed | 5m/min | Dust removal method | Drum filter element |
| Glass conveying speed | 5m/min | Filter bag cleaning method | Pulse |
| Work efficiency | 20m²/h | Working air source pressure | 0.6-0.8MPA |
| Conveying synchronous belt width | 30mm | Working air source flow rate | ≥ 3m³/min |
| Lifting synchronous belt width | 30mm | Total power | 1.9KW |
| Minimum glass size | 300mm | Processing glass thickness | 3-20mm |
Model Specifications
| Technical parameters | PS16LA |
| Max sandblasting height | 1600mm |
| Footprint (mm) | 4800x1500x2600 |
| Total power | 1.98Kw |
| Weight | 800Kg |
