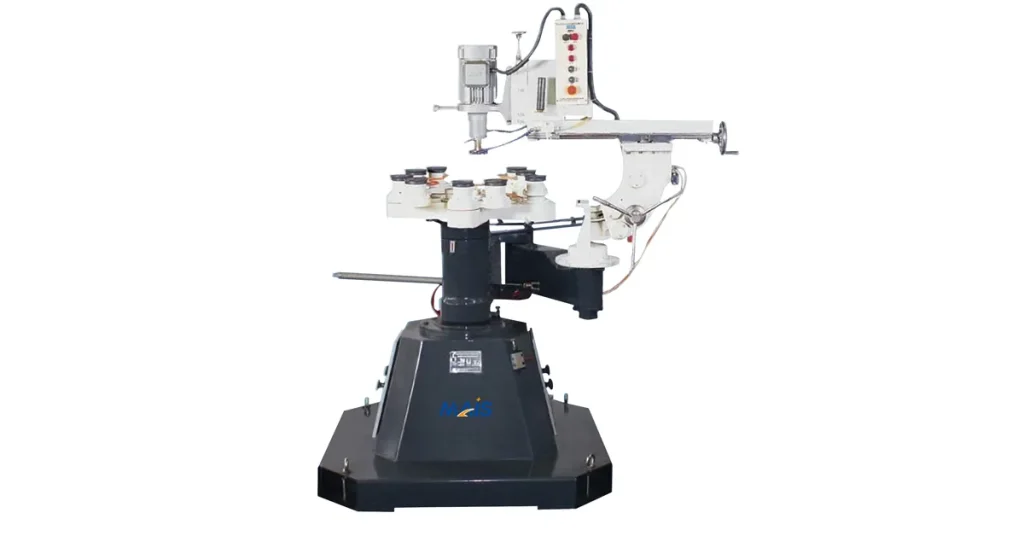

Glass Inner And Outer Circle Edging Machine (YM-1320)
Factory direct supply with lower cost and stable qualityPrecise inner and outer circle edging with smooth, polished resultsSuitable for round glass, special-shaped glass, and decorative panelsAdjustable diameter range and edging speed for different requirementsHeavy-duty structure for long-term industrial operation

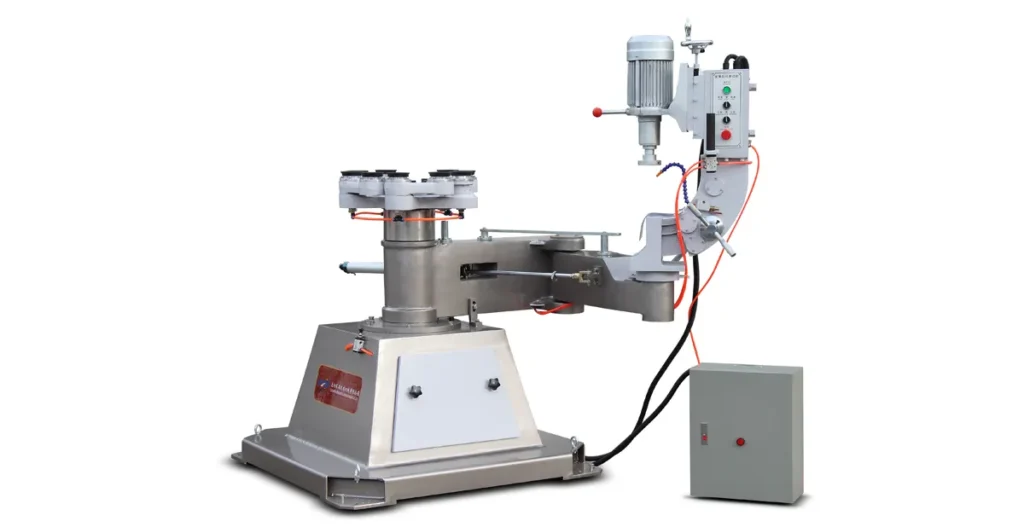

Glass Inner And Outer Circle Edging Machine (YM-1320)
This Glass Inner And Outer Circle Edging Machine is specially designed for processing the outer circle and duckbill edges of flat glass. It is capable of processing inner and outer edge profiles in various shapes, including perfect circles, ovals, or irregular curves. The machine offers two grinding modes: manual and pneumatic. It can perform rough grinding, fine grinding, and polishing all in one machine.
Key Features
Specially designed for harsh environments and expected goals, an ideal combination of size, speed and accuracy.

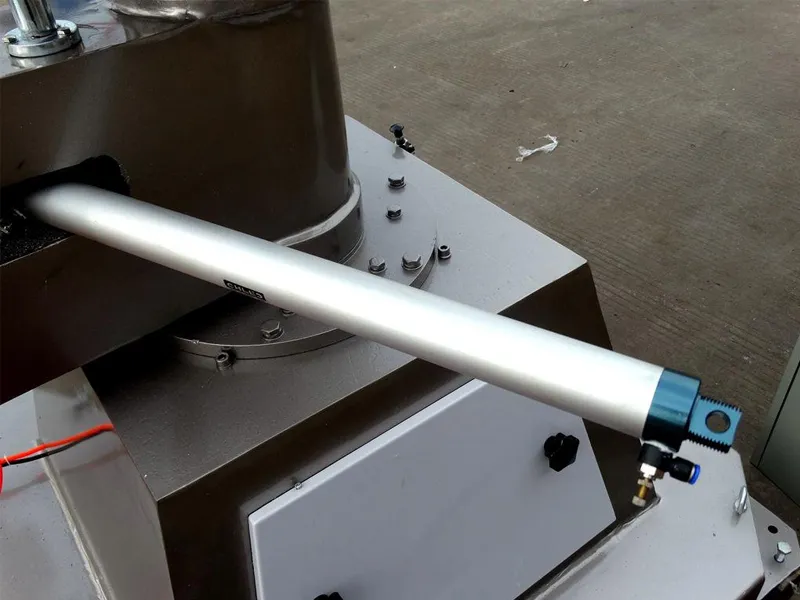

01. Cylinder device
Cylinder device The machine arm can be flexibly extended when processing different sizes, making the work easy and efficient.

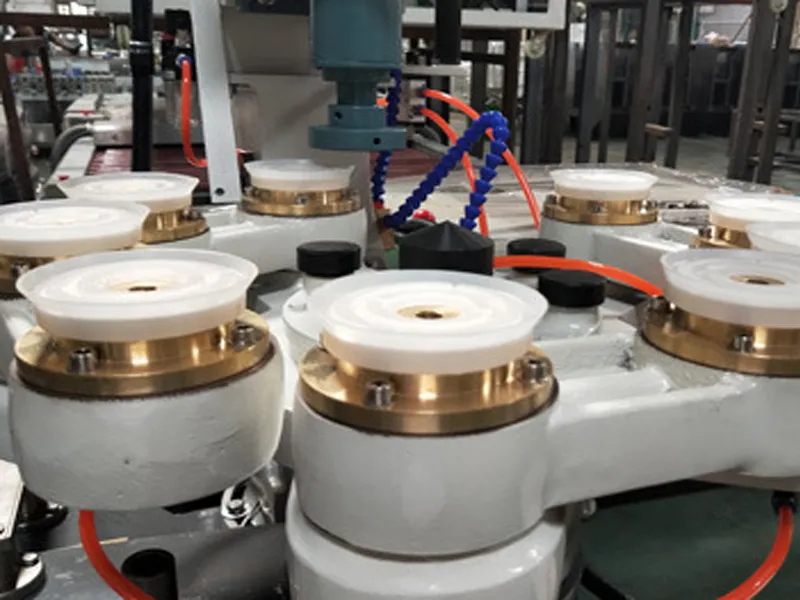

02. Glass suction cup base
Rotate the suction cup to change the angle at will to improve work efficiency.

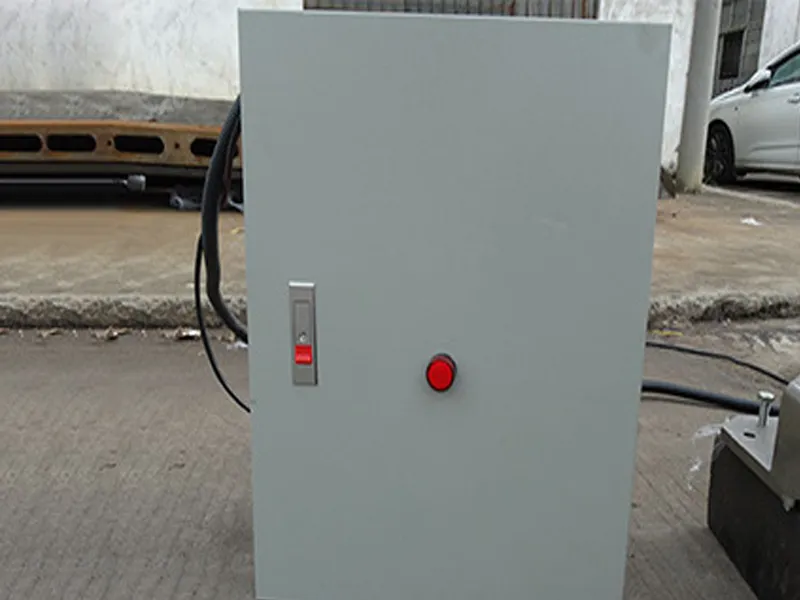

03. Electrical box
Convenient small electrical box, easy to replace electrical appliances, making the machine more efficient and easier to operate.

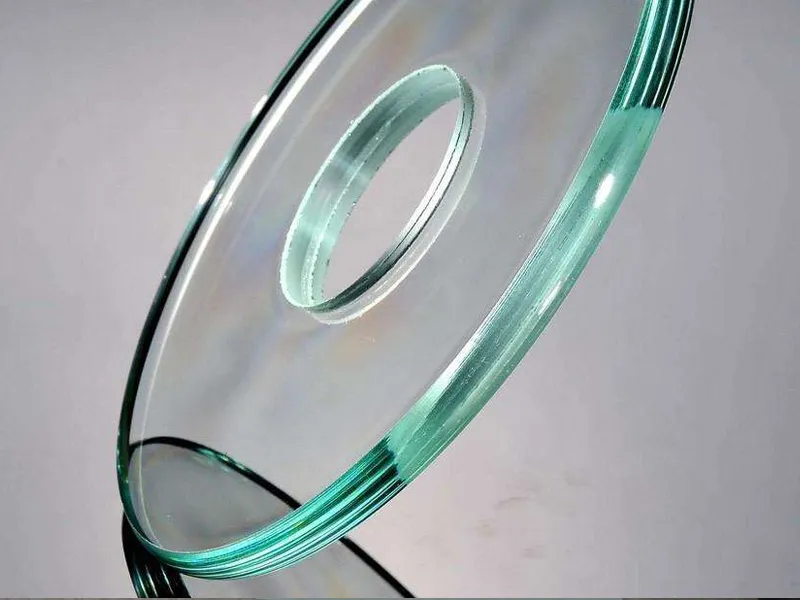

04. Effect display
Polishing effect of inner and outer edges of round glass Effect display
General Specifcations
Product introduction:
- 1.Main machine: 1300*1400*1800
- 2.Tool box*1
- 3.Independent suction cup*1
- 4.Retaining wheel*1
- 5.Grinding wheel set
- 6.Washer*4
- 7.Hanging rod*1
- 9.Motor power: 1.5-2.0KW
Technical Parameters:
| Model | MAIS YM 1320 | ||
| Rotation diameter | 100-2100mm | Workbench height | 1150mm |
| Product thickness | 3-30mm | Total power | 3KW |
| Bevel angle | 0°-20° | Voltage | 380V50HZ |
| Weight | 800kg | Bevel grinding wheel | φ150 (bowl shape) |
The type and number of grinding heads can be adjusted according to customer requirements.
