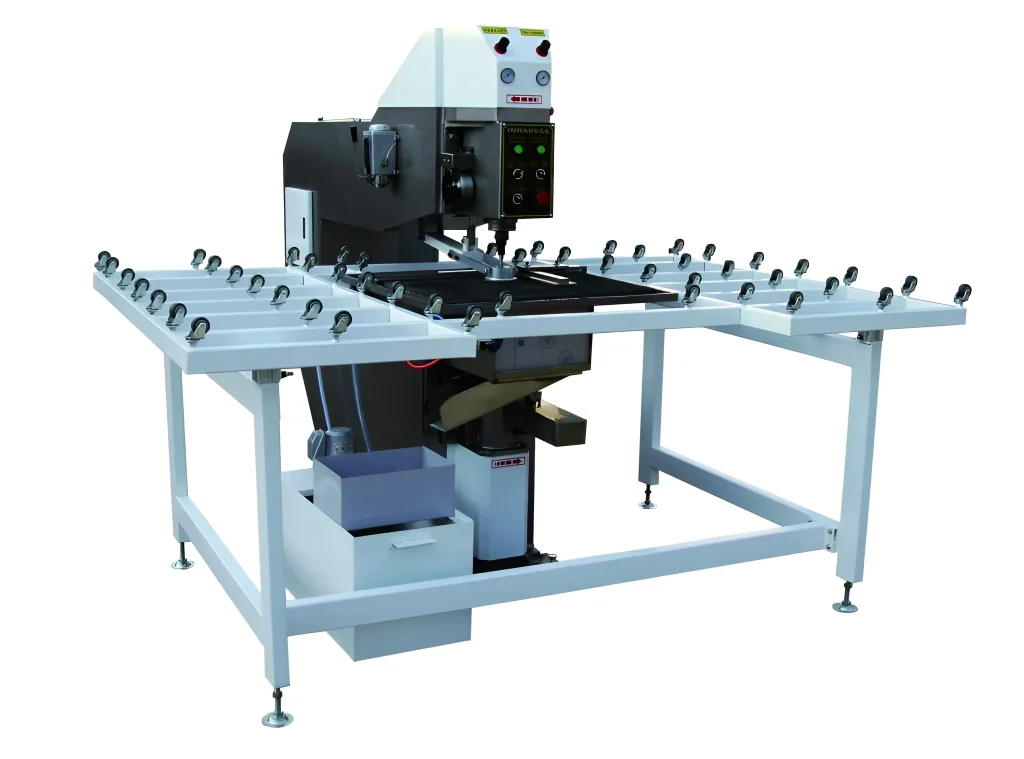

Glass Drilling Machine(MAIS ZK0222 )
Factory direct supply with lower cost and fast deliveryHigh-precision drilling with smooth, crack-free holesSuitable for flat glass, tempered glass, laminated glass, and mirrorsCustomizable spindle quantity, drilling diameter, and automation levelHeavy-duty structure for continuous industrial operation

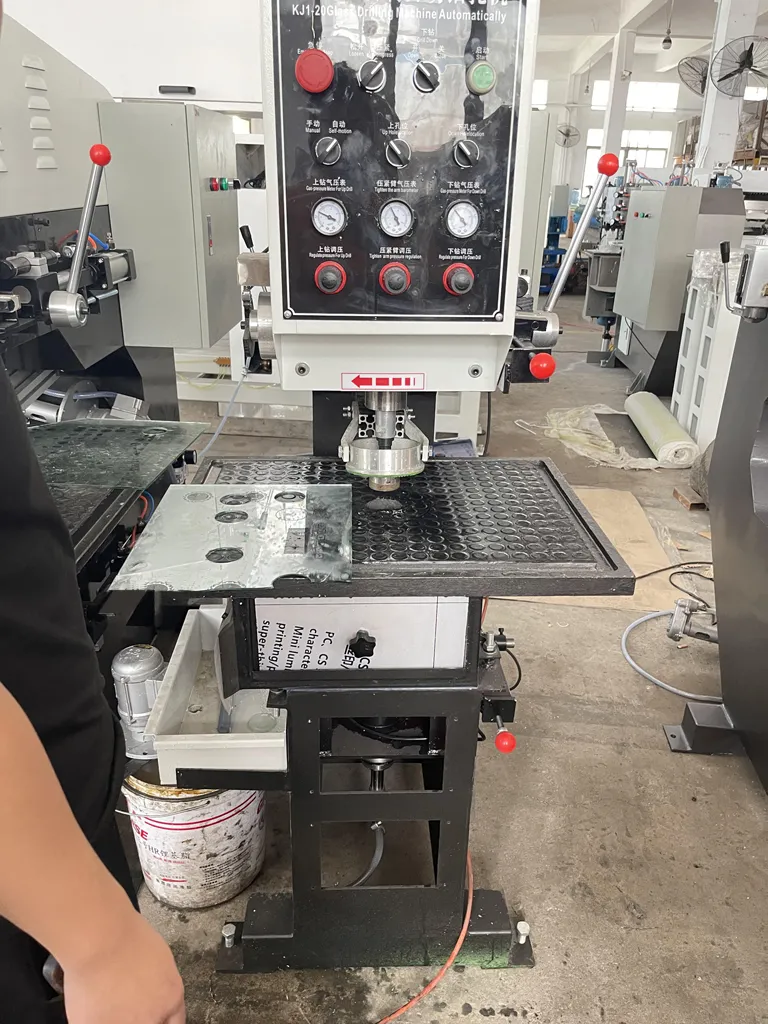

Glass Drilling Machine(MAIS ZK0222 )

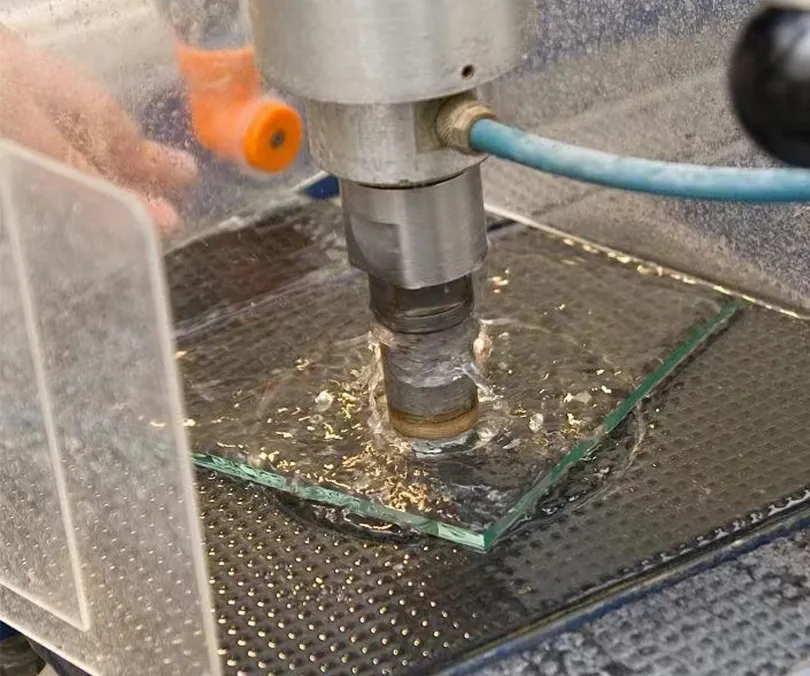

Glass drilling machine adopts pneumatic clamping glass, up and down drill bit drill, down drill bit automatically rise, position and speed adjustment. Automatic feeding, pneumatic lifting table, can be a large number of continuous production and processing.
Key Features
Specially designed for harsh environments and expected goals, an ideal combination of size, speed and accuracy.
01. The pendulum angle rotation
Glass drilling machines can provide high-precision drilling services, which is particularly important for glass products that require precise dimensions and shapes.

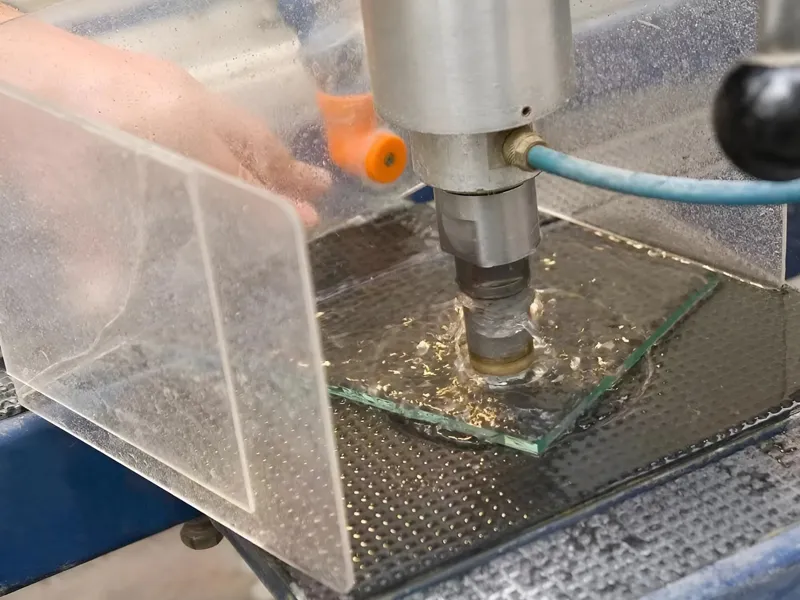

02. Efficient
Due to the use of technologies such as automatic control and pneumatic clamping, the glass drilling machine performs well in production efficiency and is suitable for mass production and assembly line operations.

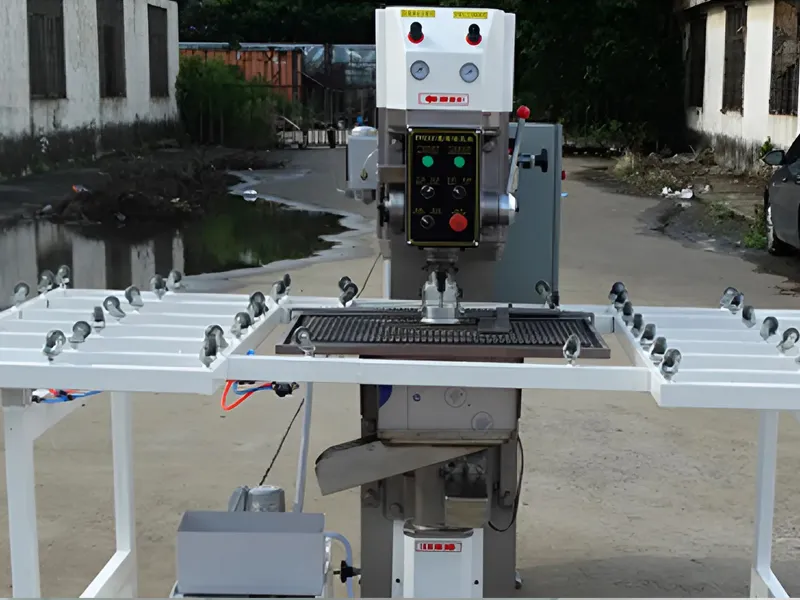

03. Multi-function
The glass drilling machine can not only process glass of different thicknesses and sizes, but also has the function of adjusting the automatic drilling time and speed of the upper and lower drill bits, as well as the fast and accurate positioning of batch processed glass workpieces, meeting diverse processing needs.

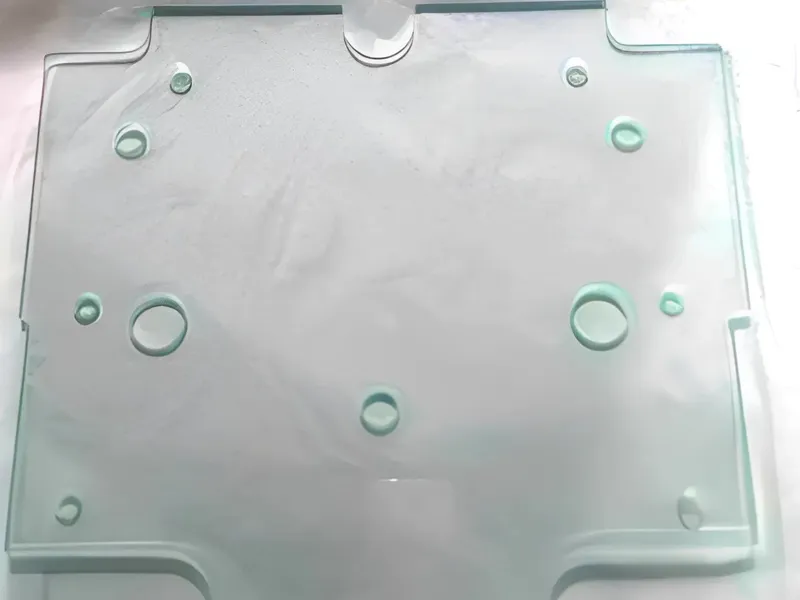

04. A wide range of applications
Glass drilling machines are widely used in home decoration, building decoration, automotive and other fields, and are indispensable mechanical equipment in glass processing and production.
General Specifcations
Working principle
- 1.The drilling speed of the drill bit can be adjusted in multiple stages, with drill bit diameters ranging from 4-120mm and drill discs exceeding 120mm.

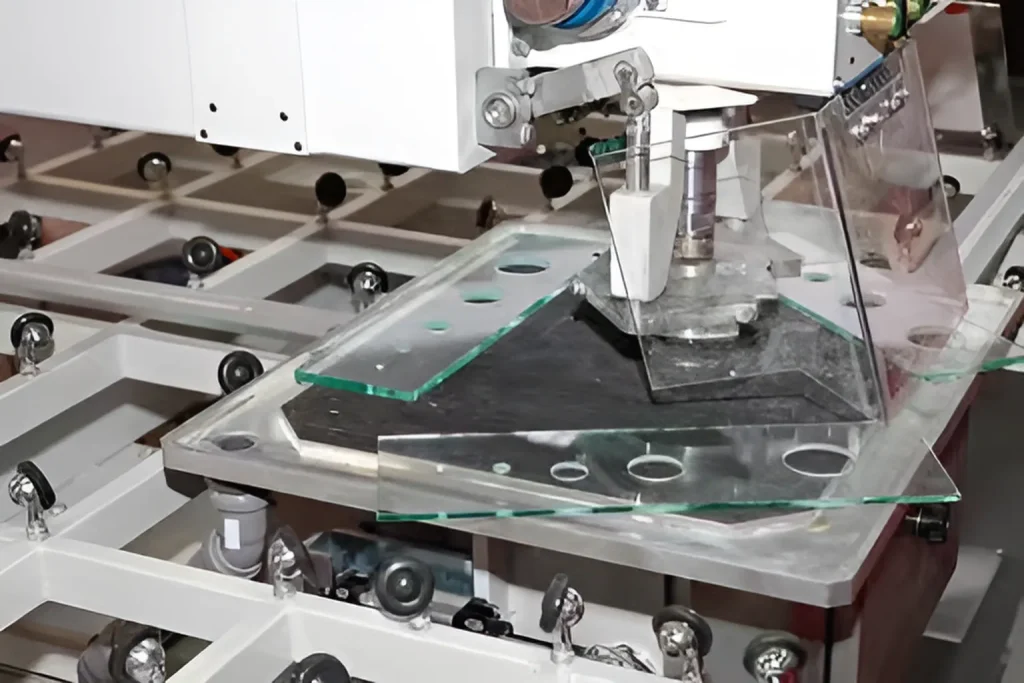

- 2.The workbench can be raised and lowered pneumatically, and can be equipped with a positioning plate for efficient batch processing
- 3.The horizontal glass drilling machine occupies an important position in production due to its large overhanging space, ability to process large-sized glass, low worktable height, and easy operation.
- 4.The glass laser drilling machine is suitable for drilling various glass materials, including ordinary glass, tempered glass, optical glass.
- 5.The laser drilling process does not produce harmful substances, does not pollute the environment, and conforms to the concept of modern industrial green production.
Technical Parameters:
| Workbench height | 850mm | Minimum glass processing size | 100X100 mm |
| Processing glass thickness | 3mm-20mm | Maximum size for glass | 2600 mm X2400 mm |
| Processing glass aperture | 4-150mm | Drilling area | 2200 * 2700 * 1700mm |
| Borehole diameter error | ≤ 0.3 mm | Total power | 2.45 Kw |
| Radial runout of spindle taper hole | ≤ 0.05 mm | Axial runout of spindle taper hole | ≤ 0.03 mm |
Grinding Wheel Configuration
| Technical parameters | PS25LA |
| Workbench height | 750mm |
| Host | 2000 * 1600 * 740mm |
| Water tank | 600 * 350 * 300mm |
| Workbench | 2200 * 1500 * 700mm |
| Electrical machinery | 1.1KW*2 |
| Footprint (mm) | 2100×2100×1800mm |
| Total power | 2.45 Kw |
| Weight | 2500kg |
The type and number of grinding heads can be adjusted according to customer requirements.

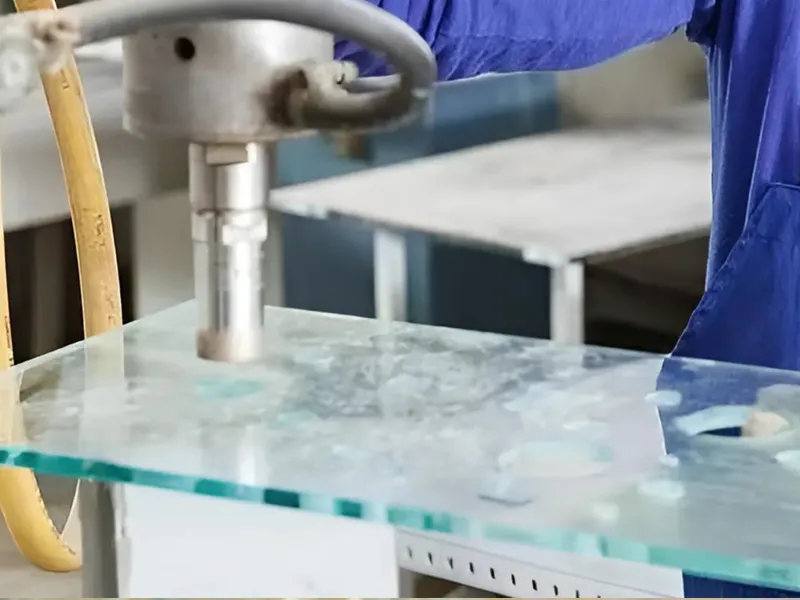

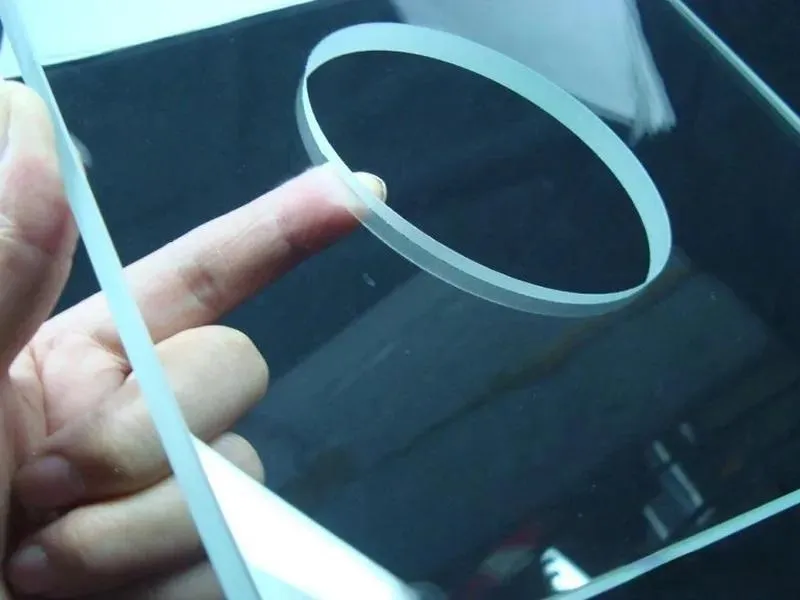

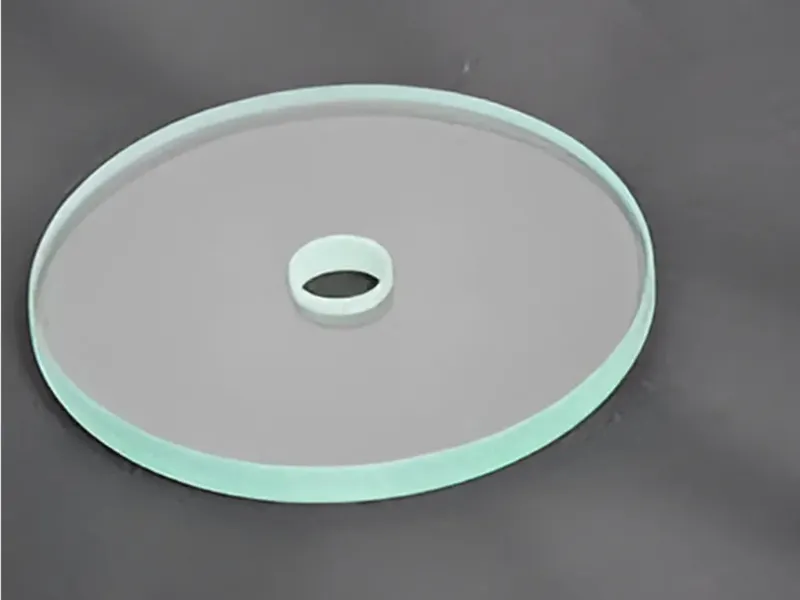

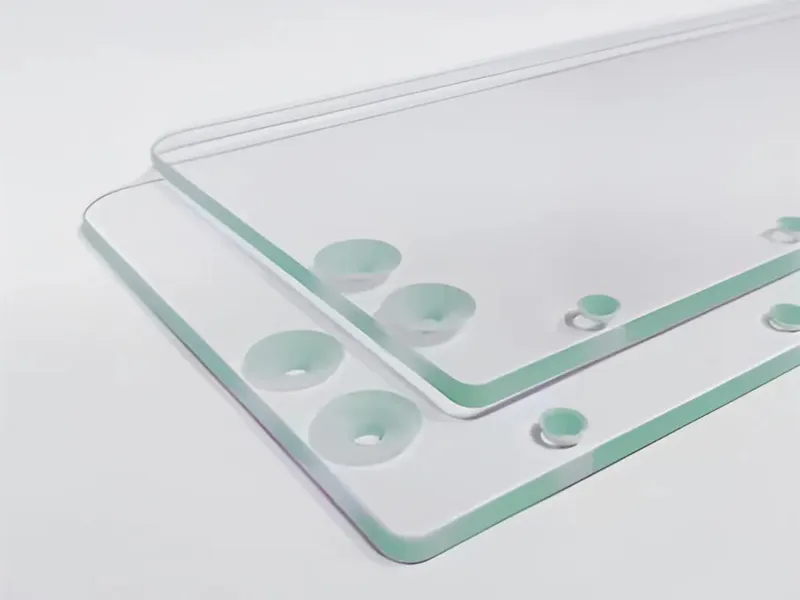

Effect display
The fully automatic glass drilling machine has good performance, good effect, high efficiency, and is more convenient to operate. It can be applied to quenched and wear-resistant steel of hardened steel and titanium alloy. The quality and efficiency of the drill bit cannot be compared to small manual drilling machines.
How Our Customers Put MAIS To Work
Glass beveling machines are used in various industries
Application of glass beveling machine in the field of architectural glass
Application of glass beveling machine in the field of decorative glass
The application of glass beveling machine in the field of household glass
Manufacturing requirements?
As a factory-direct manufacturer, we provide competitive pricing, flexible custom configurations, and consistent quality control—making our glass drilling machines an ideal choice for both small workshops and high-volume production lines.
