Glass Beveling Machine
Factory direct supply with lower cost and reliable qualitySmooth and uniform beveling with high edge claritySuitable for flat glass, mirrors, and decorative glass panelsAdjustable bevel angle and width for different processing needsCustomizable configuration for workshop or production line use

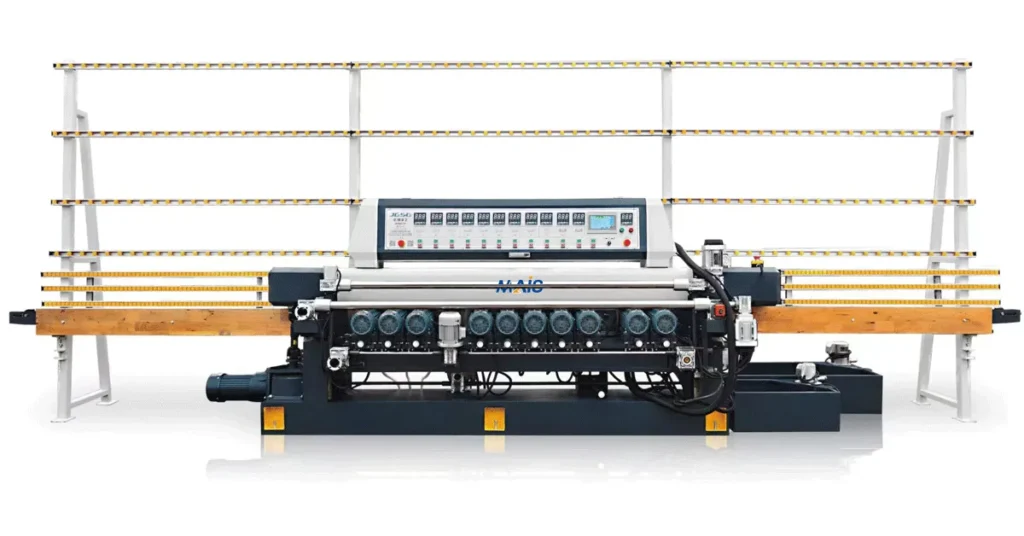

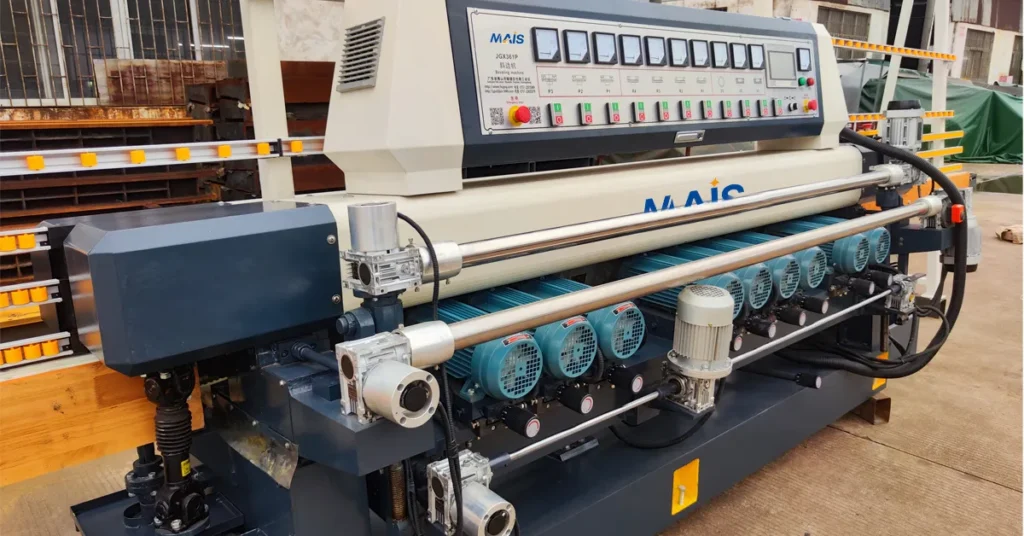

Glass beveling machine (MAIS XM261)
This machine is suitable for mass grinding of the bevel and bottom edges of flat glass. The coarse grinding, fine grinding, polishing of the bevel edge, and grinding of the bottom edge are all completed in one process. The front and rear clamping plates are made of forged parts, and the middle insert strip is made of 40Cr material for maximum wear resistance. The grinding head motor uses internationally renowned brands, making it a practical beveling machine built with genuine and high-quality materials.
Key Features
Five core advantages

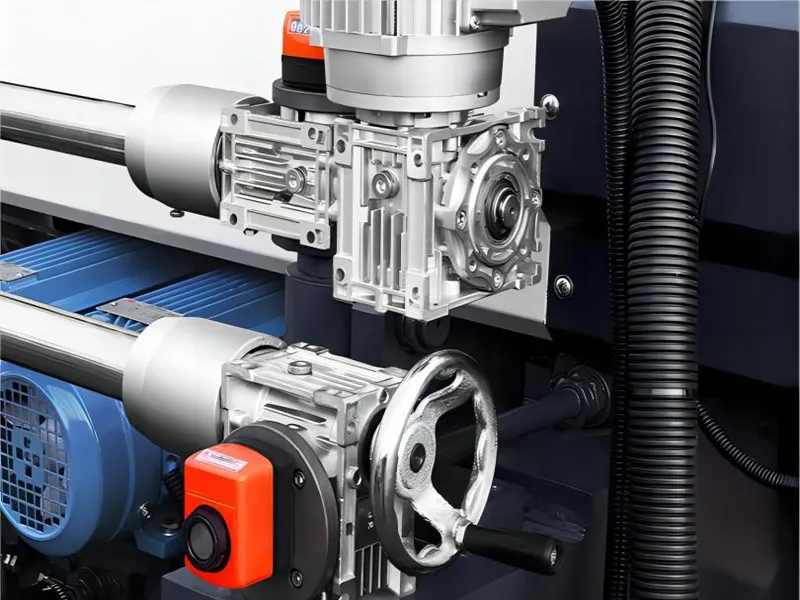

01. The pendulum angle rotation
The swing angle is electrically adjusted and and the processing thickness can be manually adjusted with reference to the thickness of the glass.

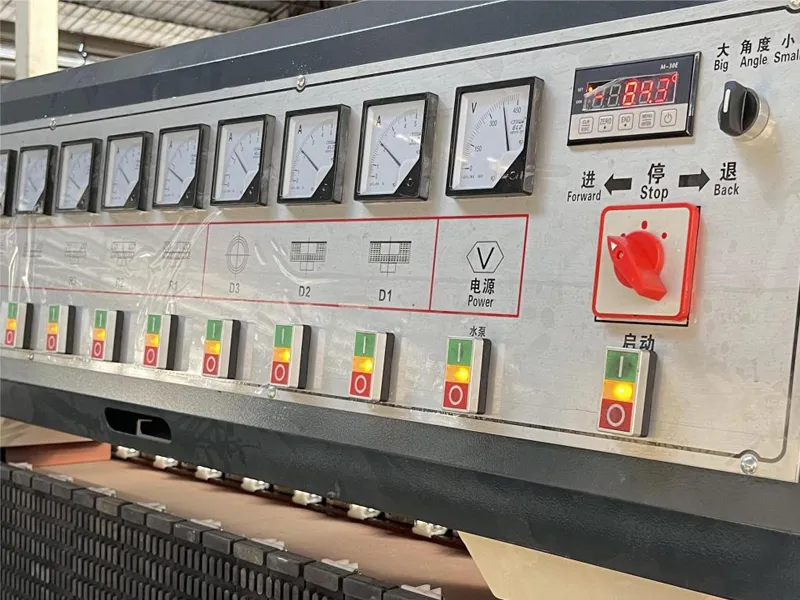

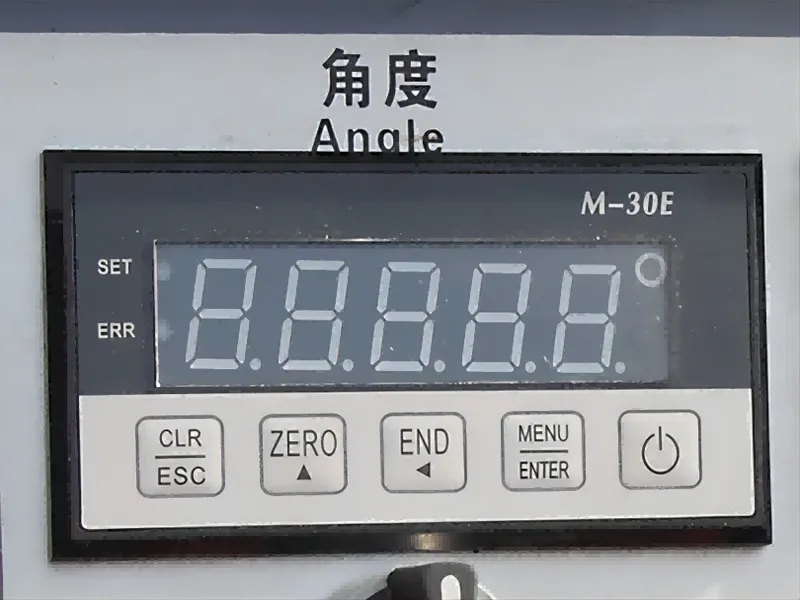

02. Electronic display
Angle-adjustable electronic display, more convenient operation, more intuitive display.

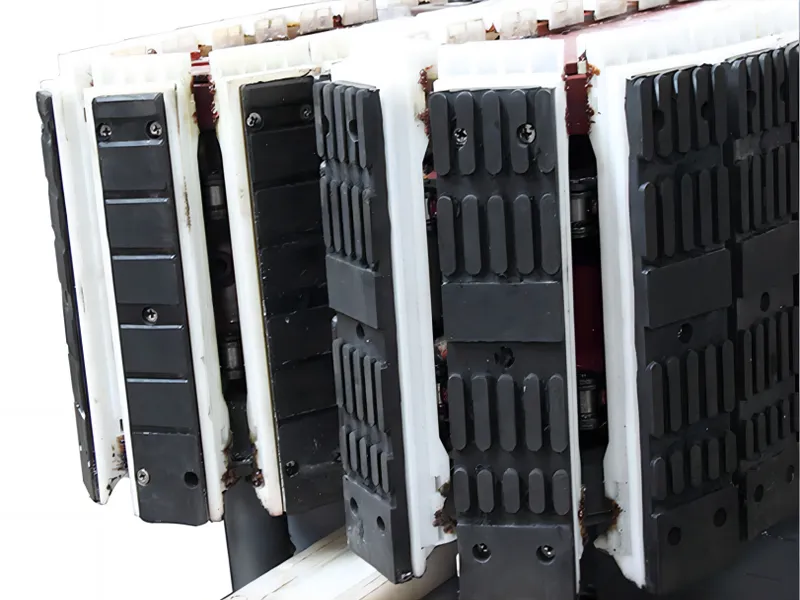

03. Forged pressing plate
Pressure plate after forging, mechanical properties have good improvement, in order to extend its service life at the same time, to ensure that the diagonal precision, to avoid the phenomenon of rotting glass.

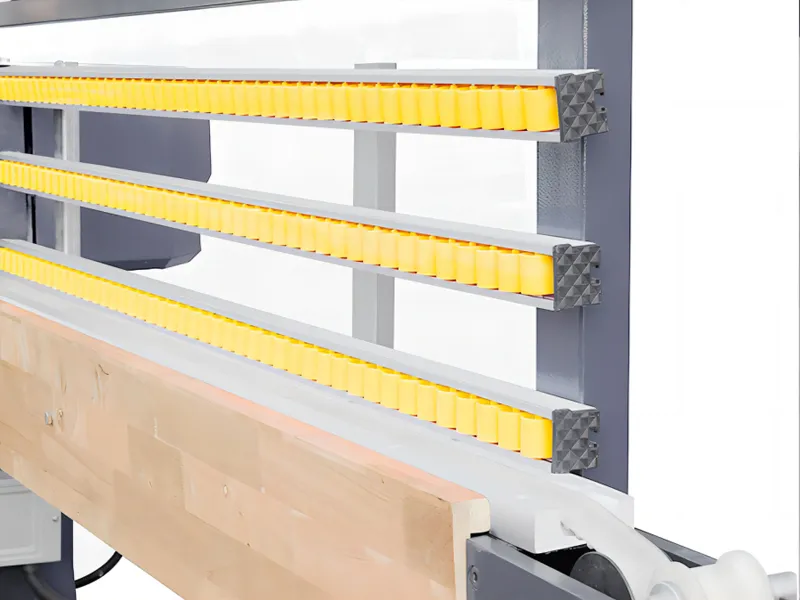

04. Synchronous belt
Stable transmission, precision machine tools, heat-treated to improve edge grinding accuracy.

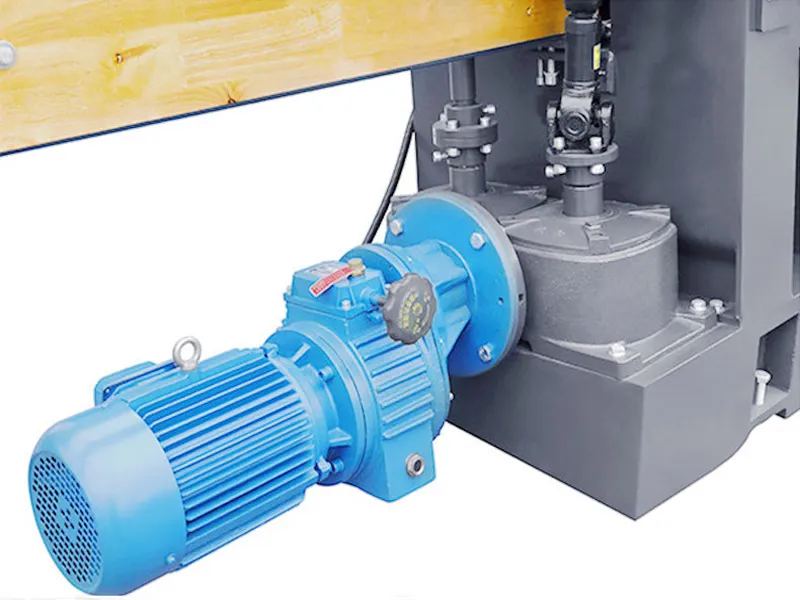

05. Continuously viable
Adopt continuously viable, adjustable range becomes larger, smooth speed change.
Product Description
- 1.Equipped with a high-precision straight edge motor, making glass cutting as easy as cutting through mud;

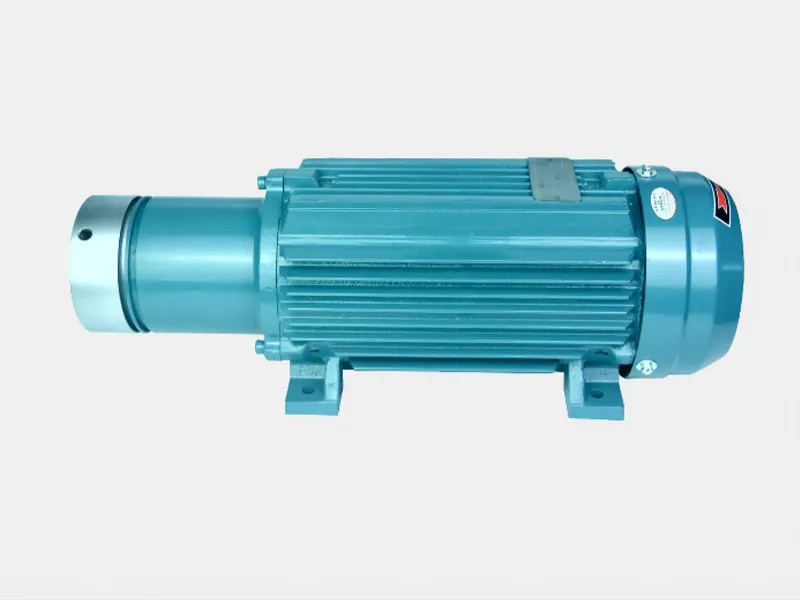

- 2.Overload protection circuit ensures the safety of the grinding head motor;
- 3.If there is an unprocessed height at the bottom of the glass, you can set it through “reservation”, which is very convenient;Both front and rear pressure plates undergo a special grinding process, preventing uneven thickness or broken glass when grinding thin glassIf there is an unprocessed height at the bottom of the glass, you can set it through “reservation”, which is very convenient;
- 4.Infinitely variable speed adjustment allows for a wide range and smooth speed transitions;
- 5.When adjusting for different thicknesses, the front beam digital display can be used as a reference;
- 6.The front chamfer motor moves synchronously with the front beam;
- 7.The uniquely streamlined control box is modern and up-to-date;
- 8.The protective cover and electric box frame have undergone processes such as acid washing, phosphating, and high-temperature baking paint, keeping the machine shiny and new;
- 9.The grinding head water tank is made of high-quality stainless steel, with edges processed through a special technique to prevent injuries;

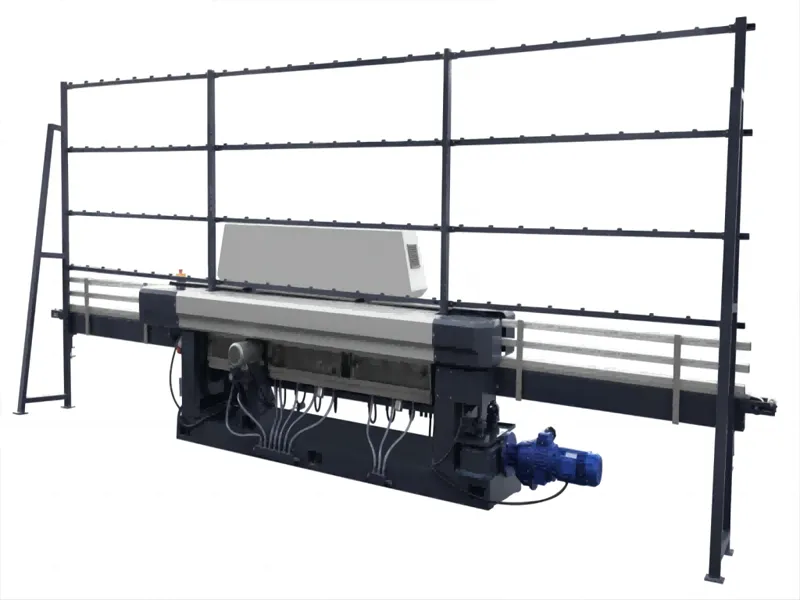

- 10.The solid cast base and large front and rear beams ensure the machine remains durable and resistant to deformation even in areas with significant temperature changes.
- 11.This equipment has an advanced structure, innovative and reasonable design, easy operation, and high work efficiency, making it an excellent choice for architectural glass, decorative glass, furniture and appliance glass, bathroom mirrors, glass counters, coffee tables, frameless glass doors, and other glass processing applications.
Technical Parameters:
| Number of grinding heads | 9pcs | Material input speed | 0.7~3.5m/min |
| Minimum processing size | 60*60mm | Thickness of processed plates | 3~12mm |
| Maximum Beveled Edge Width | 30mm(General) | Bevel angle | 0-27° |
| Power supply | 380V/50Hz/3P | Total wattage | 21KW |
| Weight | 3200KG | External Dimension | 7000*1200*2500mm |
Grinding Wheel Configuration
| No. 1 beveled edge wheel | No. 2 beveled edge wheel | No. 3 beveled edge wheel | No. 4 beveled edge wheel | No. 5 beveled edge wheel | No. 6 beveled edge wheel | No. 7 beveled edge wheel | No. 8 beveled edge wheel | No. 9 beveled edge wheel |
| Diamond Wheel | Diamond Wheel | Diamond Wheel | Resin wheel | Resin wheel | Resin wheel | Cork wheel | Woolen wheel | Woolen wheel |
The type and number of grinding heads can be adjusted according to customer requirements.
