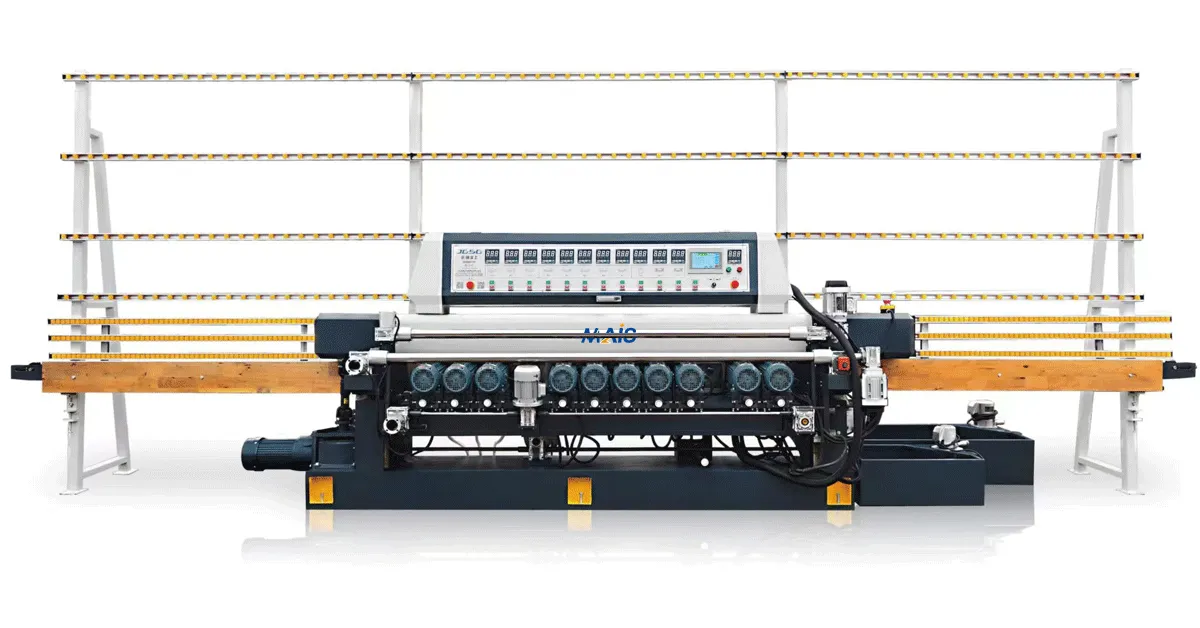

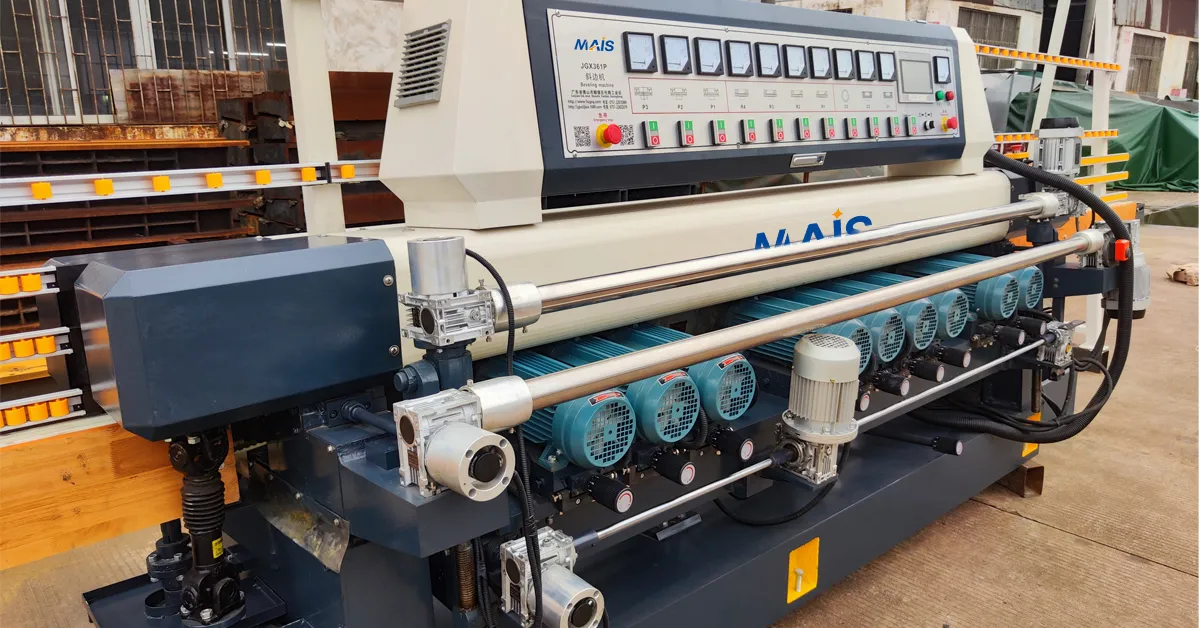

Glass beveling machine (MAIS XM261)
Glass beveling machine for coarse grinding, fine grinding, polishing of bevel edges, and bottom edge grinding. Built with durable materials and high-quality motors.
Glass beveling machine (MAIS XM261)

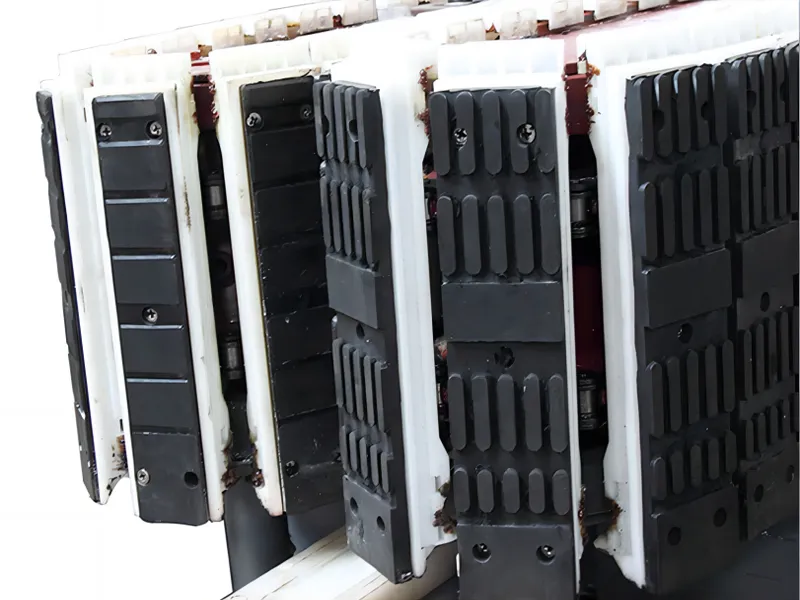

This machine is suitable for mass grinding of the bevel and bottom edges of flat glass. The coarse grinding, fine grinding, polishing of the bevel edge, and grinding of the bottom edge are all completed in one process. The front and rear clamping plates are made of forged parts, and the middle insert strip is made of 40Cr material for maximum wear resistance. The grinding head motor uses internationally renowned brands, making it a practical beveling machine built with genuine and high-quality materials.
Key Features
Five core advantages
01.
02.
03.
04.
05.
Product Description
- Equipped with a high-precision straight edge motor, making glass cutting as easy as cutting through mud;
- Overload protection circuit ensures the safety of the grinding head motor;
- If there is an unprocessed height at the bottom of the glass, you can set it through “reservation”, which is very convenient;Both front and rear pressure plates undergo a special grinding process, preventing uneven thickness or broken glass when grinding thin glassIf there is an unprocessed height at the bottom of the glass, you can set it through “reservation”, which is very convenient;

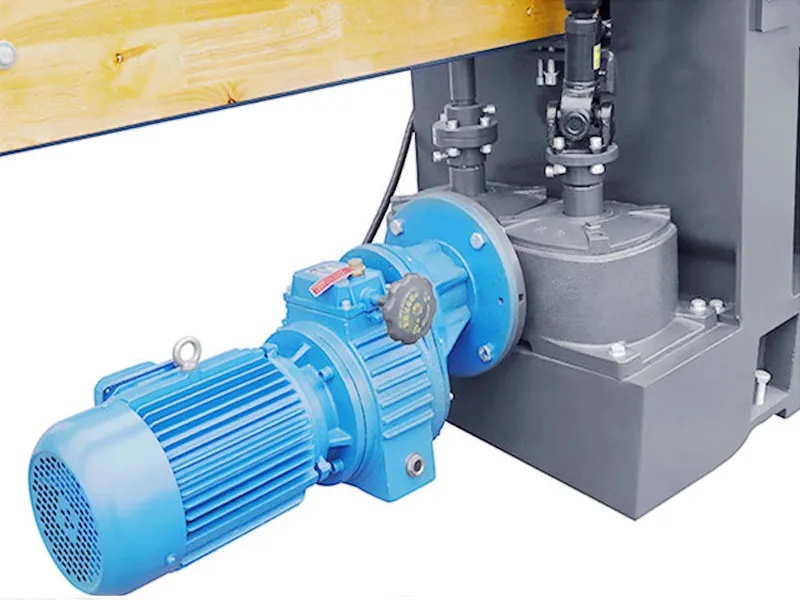

- Infinitely variable speed adjustment allows for a wide range and smooth speed transitions;
- When adjusting for different thicknesses, the front beam digital display can be used as a reference;
- The front chamfer motor moves synchronously with the front beam;
- The uniquely streamlined control box is modern and up-to-date;
- The protective cover and electric box frame have undergone processes such as acid washing, phosphating, and high-temperature baking paint, keeping the machine shiny and new;
- The grinding head water tank is made of high-quality stainless steel, with edges processed through a special technique to prevent injuries;
- The solid cast base and large front and rear beams ensure the machine remains durable and resistant to deformation even in areas with significant temperature changes.
This equipment has an advanced structure, innovative and reasonable design, easy operation, and high work efficiency, making it an excellent choice for architectural glass, decorative glass, furniture and appliance glass, bathroom mirrors, glass counters, coffee tables, frameless glass doors, and other glass processing applications.
Technical Parameters
| Number of grinding heads | 9pcs | Material input speed | 0.7~3.5m/min |
| Minimum processing size | 60*60mm | Thickness of processed plates | 3~12mm |
| Maximum Beveled Edge Width | 30mm(General) | Bevel angle | 0-27° |
| Power supply | 380V/50Hz/3P | Total wattage | 21KW |
| Weight | 3200KG | External Dimension | 7000*1200*2500mm |
Grinding Wheel Configuration
| No. 1 beveled edge wheel | No. 2 beveled edge wheel | No. 3 beveled edge wheel | No. 4 beveled edge wheel | No. 5 beveled edge wheel | No. 6 beveled edge wheel | No. 7 beveled edge wheel | No. 8 beveled edge wheel | No. 9 beveled edge wheel |
| Diamond Wheel | Diamond Wheel | Diamond Wheel | Resin wheel | Resin wheel | Resin wheel | Cork wheel | Woolen wheel | Woolen wheel |
Effect display

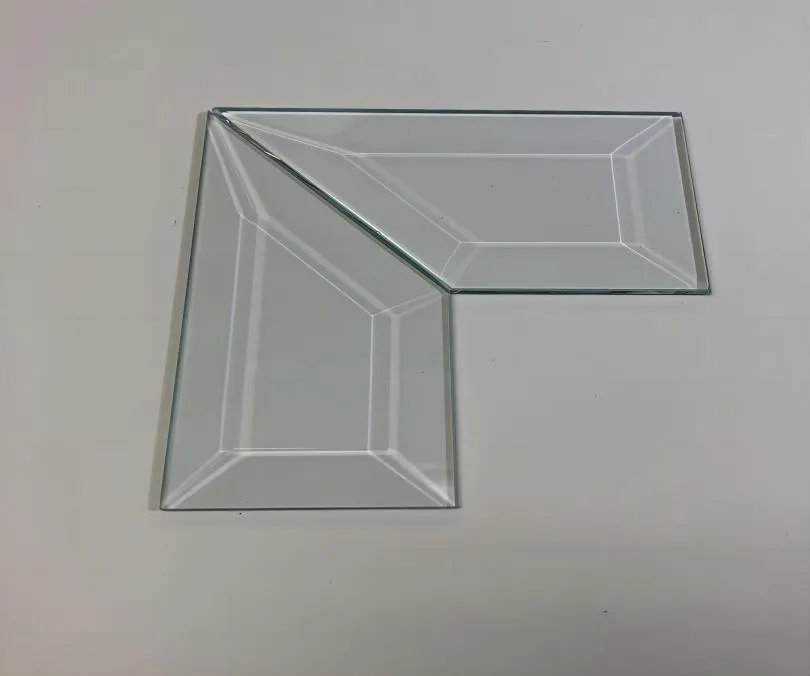

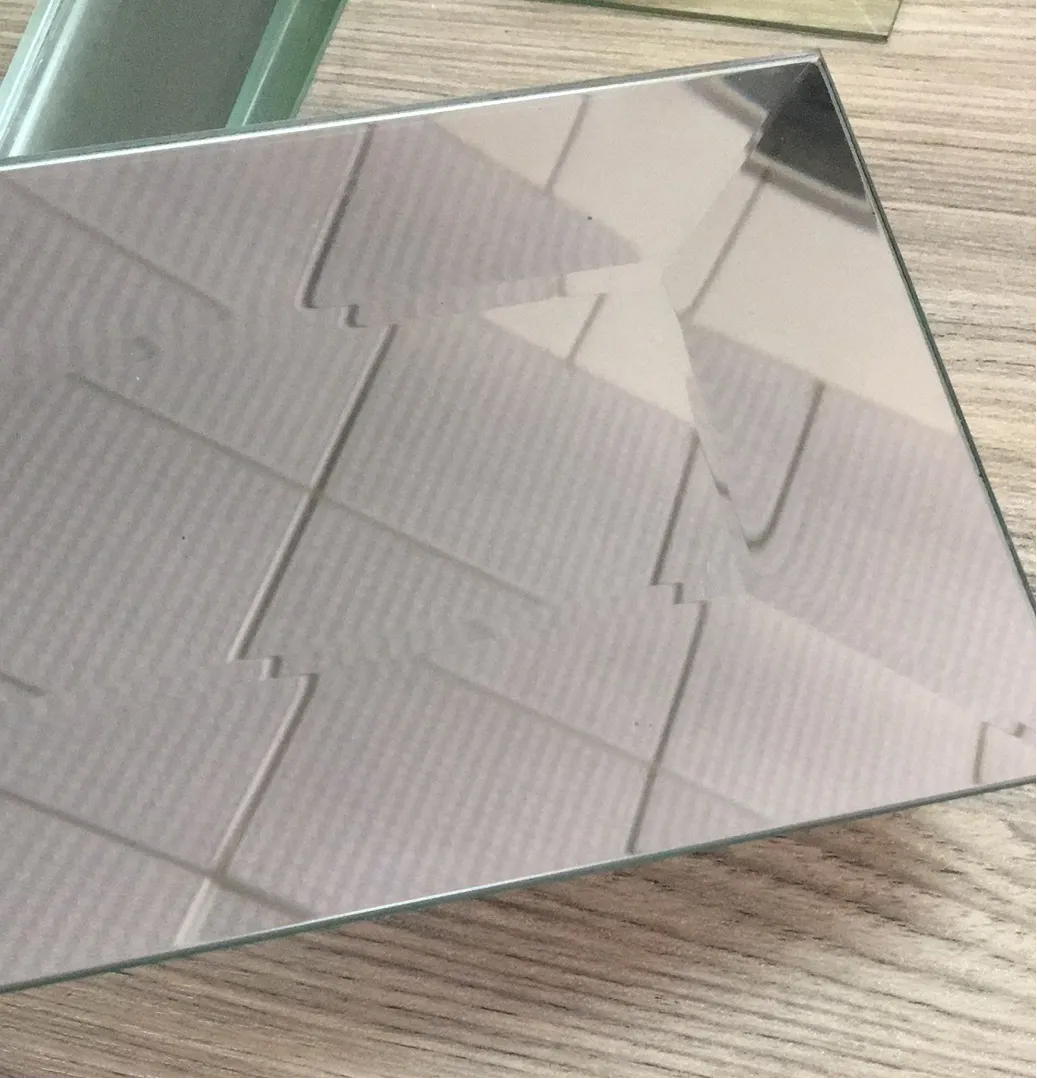

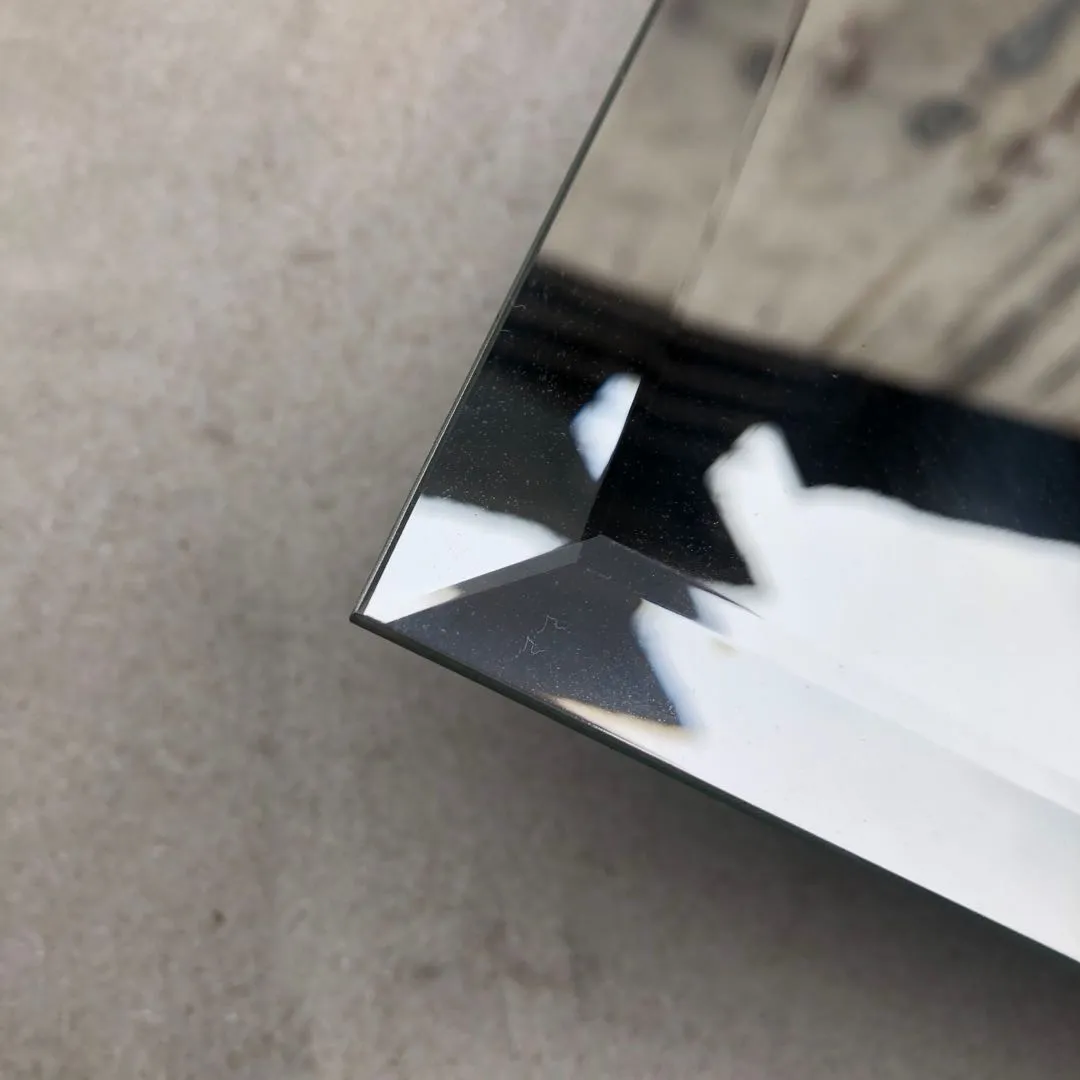

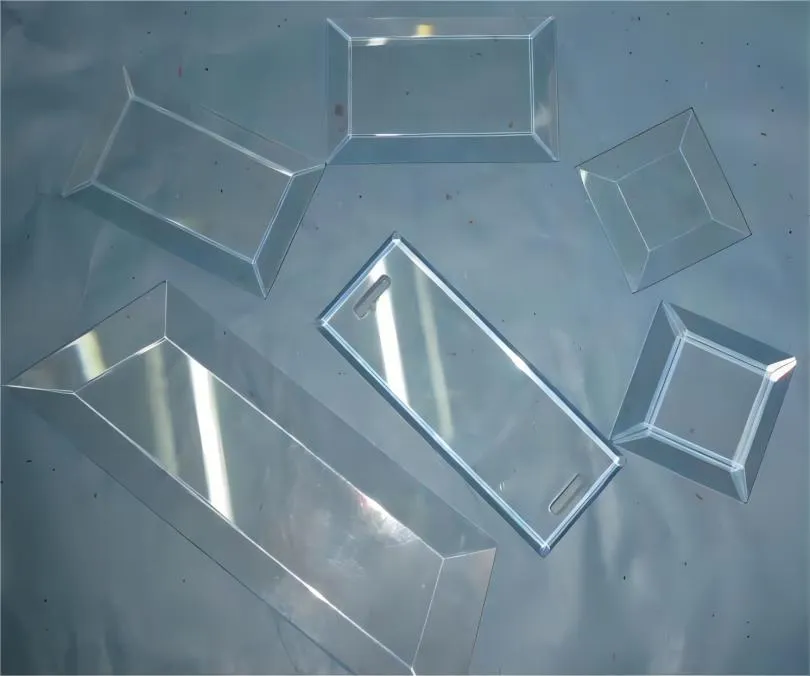

Finished products with different bevel widths and bevel angles.
Maintenance of edge grinding machine
1. After starting and stopping the machine every day, the operator should do routine checking, including whether the grinding wheel is loose, the degree of wear and tear, whether the circulating water is clean, etc. When grinding different thicknesses of glass, test grinding must be carried out. When grinding different thicknesses of glass, test grinding must be carried out.
2. The grinding wheel should be checked, adjusted and corrected every day. The circulating pipe should be kept unobstructed. Should be done to change the water. In order to avoid the water tank dirt caused by the water pipe blockage.
3. When changing water, please unplug the power supply first, then take out the water tank, pour out the waste water, and clean the powder scale in the water tank and on the filter.
4. Glass grinding machine chain, gear, screw, etc. to keep regular filling lubricating grease.
5. Suspend the use, should keep the surrounding environment of the glass grinding machine dry, the equipment shell should be diligent with a rag to wipe, so that it is not easy to rust.
6. Timely inspection class machinery of the activities of the parts of the gap is large, is conducive to maintaining the precision of the processed parts.
7. In the glass edge grinding machine processing small piece of glass must pay attention to the clamping plate is flat, to ensure that the small glass is smoothly clamped.
8. Induction transmission, turbo box should be regularly filled with oil. To prevent wear and tear of internal transmission parts. Note: The residual oil should be discharged before refilling the oil.
