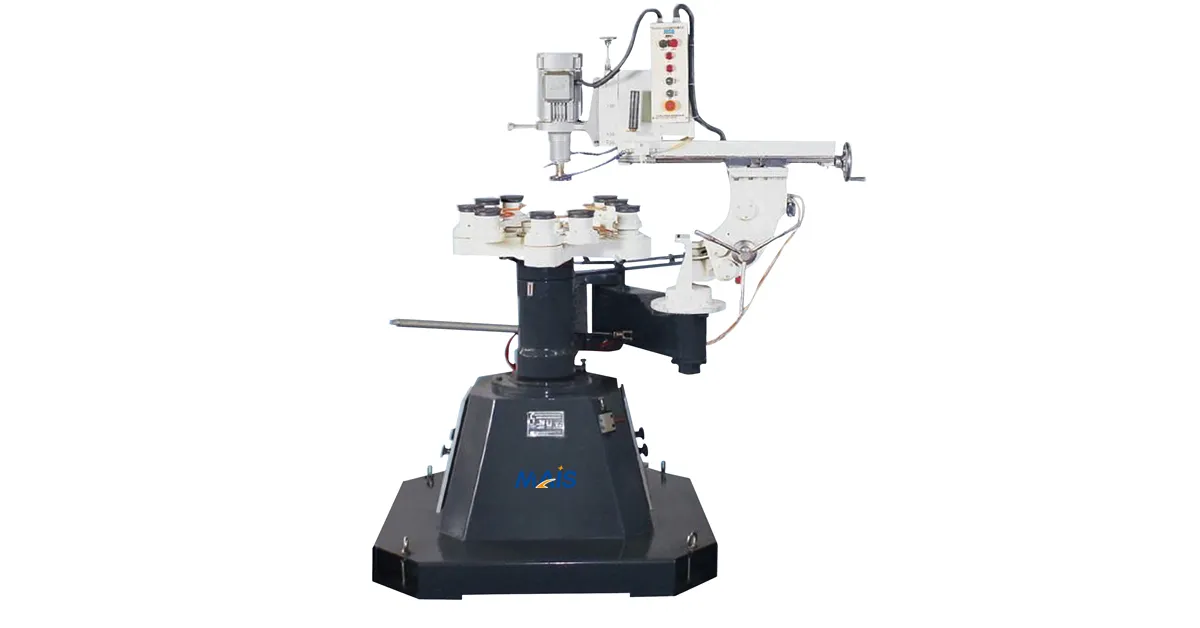

Glass Inner And Outer Circle Edging Machine (yM-1321)
Glass Inner And Outer Circle Edging Machine (yM-1320)
This Glass Inner And Outer Circle Edging Machine is specially designed for processing the outer circle and duckbill edges of flat glass. It is capable of processing inner and outer edge profiles in various shapes, including perfect circles, ovals, or irregular curves. The machine offers two grinding modes: manual and pneumatic. It can perform rough grinding, fine grinding, and polishing all in one machine.
Key Features
Specially designed for harsh environments and expected goals, an ideal combination of size, speed and accuracy.
01.
02.
03.
04.
General Specifcations
Product introduction:
- Main machine: 1300*1400*1800

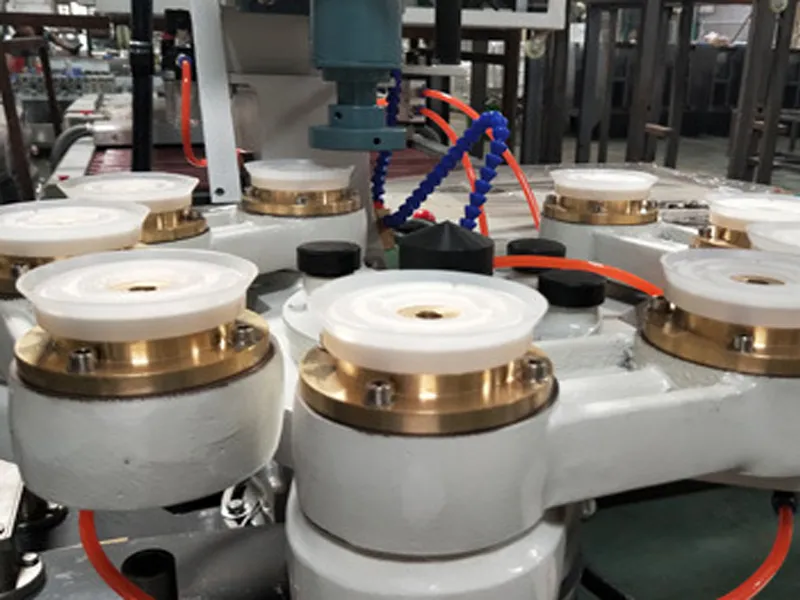

- Tool box*1, independent suction cup*1, backing wheel*1
- Grinding wheel set
- Washer*4,
- Hanging rod*1,
- Water-blocking brush*1
- Motor power: 1.5-2.0KW
- Stepless motor
Specifications & Technical parameters
| Model | MAIS YM 1320 | ||
| Rotation diameter | 100-2100mm | Workbench height | 1150mm |
| Product thickness | 3-30mm | Total power | 3KW |
| Bevel angle | 0°-20° | Voltage | 380V50HZ |
| Weight | 800kg | Bevel grinding wheel | φ150 (bowl shape) |
