Mono-Block 5 Axis Bridge Saw
MAIS CNC 5-Axis Bridge Saw offers high precision and versatility for stone cutting, engraving, and custom processing. Ideal for granite, marble, glass, and ceramics, this machine utilizes five independent motion axes for superior accuracy and flexibility. Perfect for architectural decoration, custom products, and artistic sculpture applications.

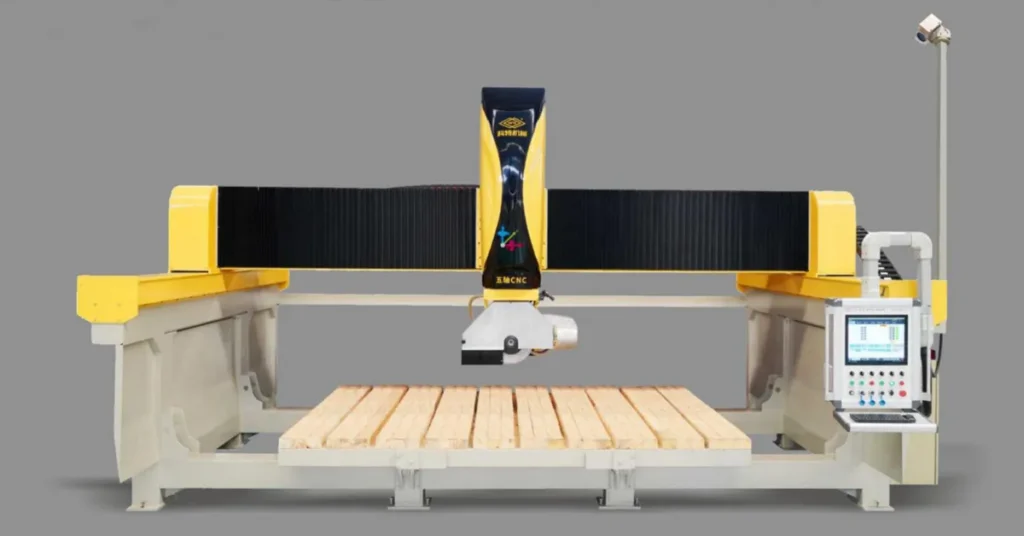

Mono-Block 5 Axis Bridge Saw

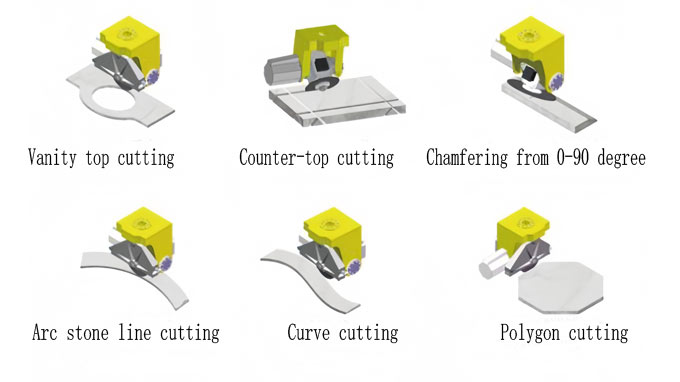

This machine is a mono-block 5 axis Bridge Saw.Besides straight cutting,thismachine is also able to make polygon cutting,straight/arc stone line cutting,curvecutting,vanity top cutting,internal/external round shape cutting and chamferingFeaturing as smaller installation space,higher precisement and efficiency,moresimple operation,this model is your best choice for processing stone.
Technical Parameters:
| Model | MAIS-0545Y |
| X-axis travel | 3500mm |
| Y-axis travel | 2300mm |
| Z-axis travel | 450mm |
| A-axis travel | 0~90° |
| C-axis travel | ±360° |
| Saw blade speed | 0–4000 r/min |
| Worktable flap angle | 0~84° |
| Blade diameter | Φ350–Φ600mm |
| Worktable specifications | 3200 × 2000mm |
| Cutting thickness | 0–180mm |
| Water consumption | 4 m³/h |
| Total power | 31 kW |
| Main motor power | 18.5 kW |
| Machine dimensions (L×W×H) | 6000 × 4300 × 3400mm |
| Total weight | 5600 kg |

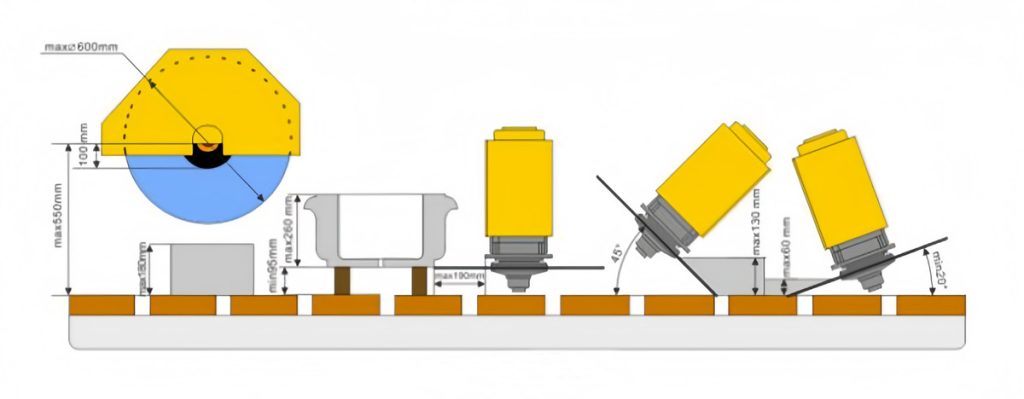

Mono Block 5 Axis Bridge Saw Detail
- 1.Mono Block Structure: One-piece monoblock frame ensures superior rigidity, vibration reduction, and long-term cutting accuracy.
- 2.5-Axis CNC Precision Control: Enables complex angle cuts, curves, and sink cutouts with high repeatability and minimal manual intervention.
- 3.High-Speed Bridge MovementHigh-Speed Bridge Movement Optimized bridge and spindle motion deliver faster cutting cycles without sacrificing precision. Optimized bridge and spindle motion deliver faster cutting cycles without sacrificing precision.
- 4.Automatic Tool Rotation & Tilting: A, C axes support ±90° tilting and 360° rotation for advanced stone profiling and bevel cutting.
- 5.Heavy-Duty Spindle Motor: Powerful spindle guarantees stable performance on granite, marble, quartz, and engineered stone.
- 6.Integrated Water Cooling: System Efficient water management improves blade life, reduces dust, and ensures clean cutting edges.
- 7.User-Friendly CNC Interface: Intuitive control system simplifies operation, reduces training time, and improves productivity.
- 8.Compact Footprint with Full Capability: Space-saving monoblock design delivers full 5-axis functionality, ideal for modern stone workshops.
