Bridge Saw Production Line

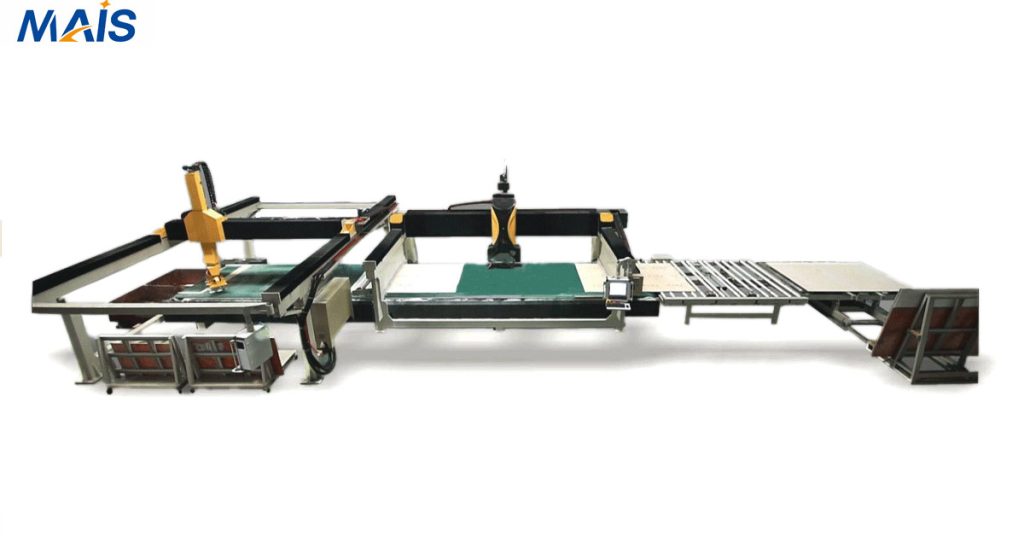

Automatic Intelligent Bridge Saw Production Line MAIS P31

Automatic Intelligent Bridge Saw Production Line MAIS P31

Place the stone slab on the processing line through the fully automatic loading machine,Then transport it to the belt-type intelligent bridge cutting machine through the transition frame, and the intelligent bridge cutting machine automatically reads the QR code ID card of the stone slab,Automatically retrieve the cutting plan of the slab and then automatically AI knife alignment, automatic labeling, automatic board movement, fully automatically complete the cutting, and then transport it to the belt buffer table to wait for unloading.

Automatic bridge saw models

ModelMAIS P31
Blade diameterØ350mm
Cutter head rotation0~360°
Effective cutting size3400*2200mm
Gas working pressure0.4~0.6MP
Cutting thickness0~60mm
Water consumption4m³/h
Main motor power15Kw
Total power23KW
Machine dimensions6550*5050*2900 mm
Total weight8500Kg

Function display

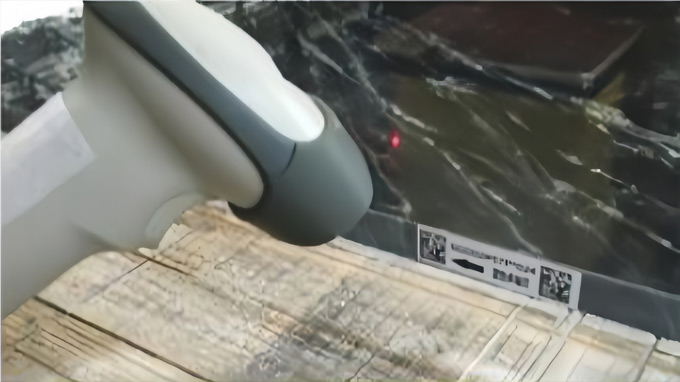

Read-QR-code-of-the-slab

Call-out-the-cutting-plan

Call-out-the-cutting-plan

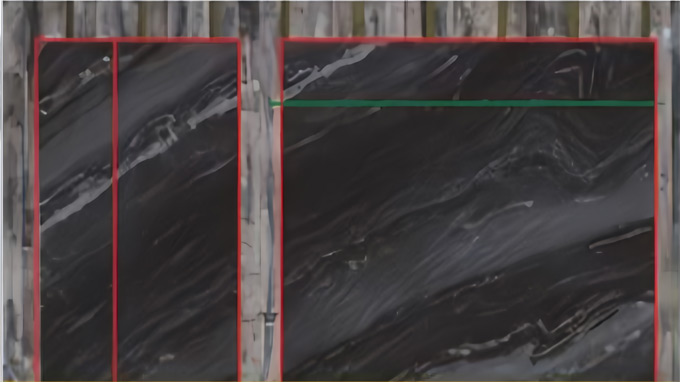

Simulate-cutting-for-verification

Simulate-cutting-for-verification

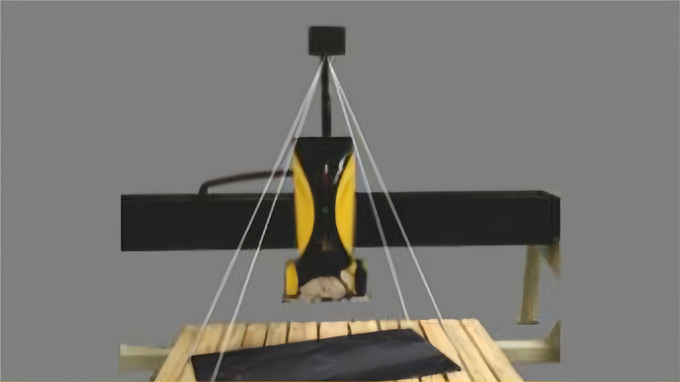

Al-Cutter-Presetting

Al-Cutter-Presetting

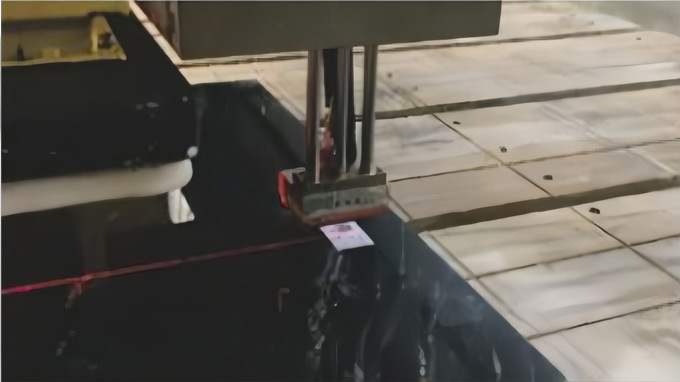

Automatic-labeling

Automatic-labeling

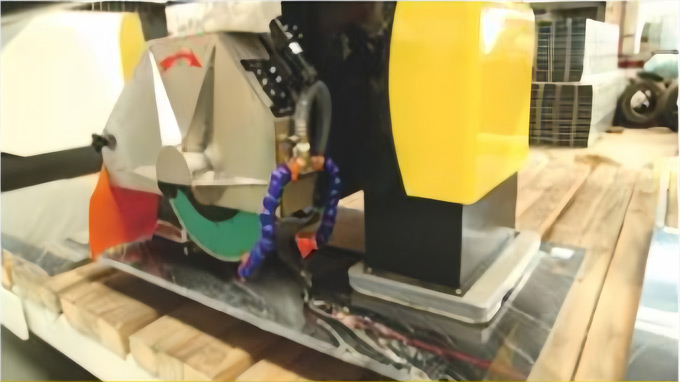

One-key-operation-for-cutting-and-moving-slabs-automatically

One-key-operation-for-cutting-and-moving-slabs-automatically
