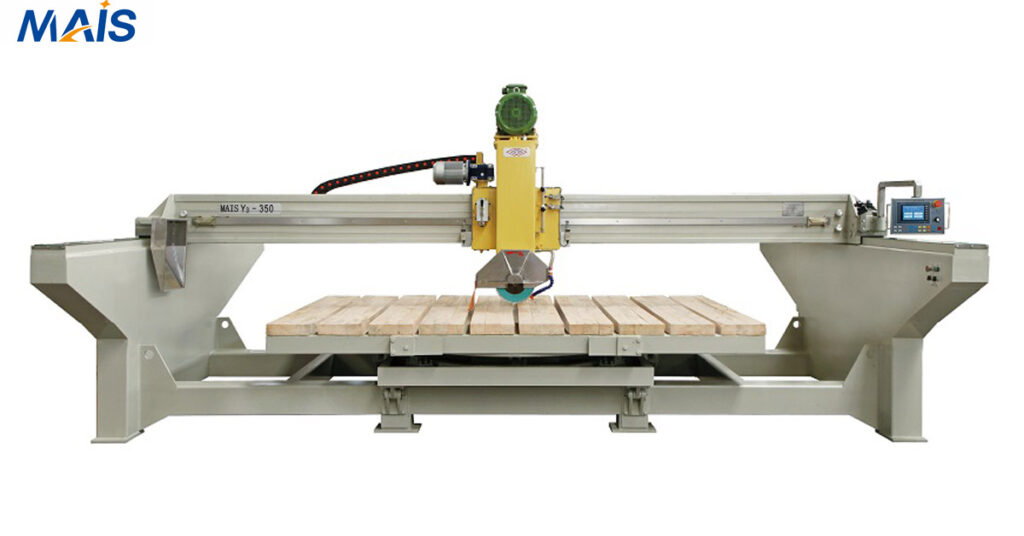

Integrated Automatic Bridge Saw
This machine is equipped with microcomputer control technology, featuring automatic return-to-origin knife positioning, a water-cooled spindle motor, and a head that rotates 90°. The frame includes a feeding window, and the worktable is equipped with a hydraulic lifting feed roller, ensuring simple and convenient operation. It is particularly suitable for cutting slabs used in reconstituted quartz and microcrystalline stone production lines. The unitary structure is compact, facilitating easy transportation, installation, and debugging. Additionally, it utilizes infrared knife positioning and hydraulic transmission. The worktable can rotate horizontally from 0 to 360 degrees and tilt vertically from 0 to 85 degrees, offering high precision and ease of operation to meet modern industrial needs.
General Specifcations
Product introduction:
1.All-in-One Integrated Design
Combines cutting, positioning, and control in one system for streamlined operation.
2.Fully Automatic Cutting Process
Automatic slab measurement and cutting reduce manual input and human error.
3.High Production Efficiency
Optimized workflow significantly improves output and shortens processing cycles.
4.Precision CNC Control System
Ensures accurate, repeatable cuts for complex stone fabrication tasks.
5.Reduced Labor Dependency
Automation lowers labor costs and minimizes operator skill requirements.
6.Stable Heavy-Duty Structure
Rigid frame design guarantees cutting stability and long-term machine reliability.
7.Wide Material Compatibility
Suitable for granite, marble, quartz, and engineered stone processing.
Technical Parameters:

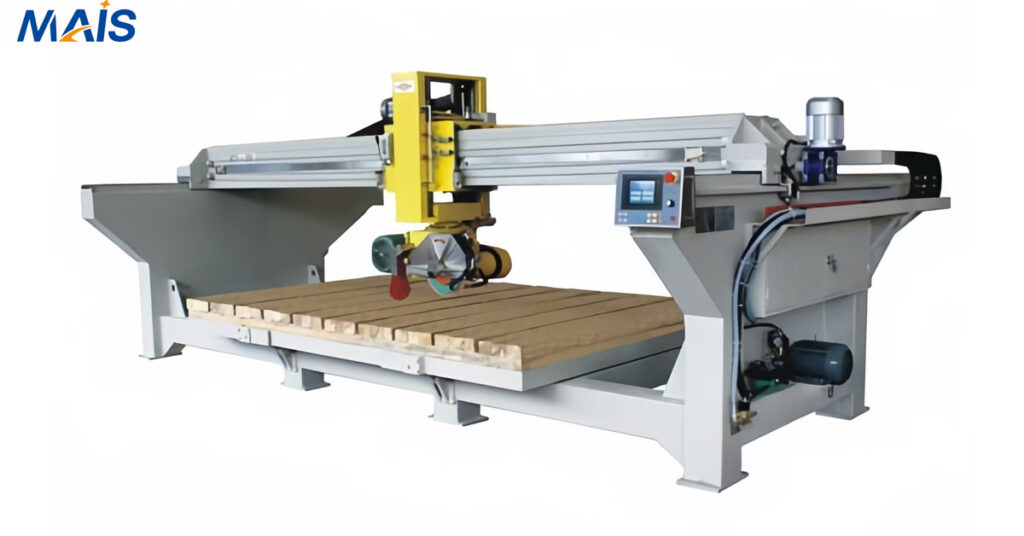

Automatic Bridge Saw MAIS Y1-350
MAIS Y1-350 is mainly used for cutting marble and granite slabs. As the machine is an integrated structure, it has the advantages of small size, convenient transportation, installation and debugging, high precision, simple operation, etc., and saves the time and cost of users making cement foundation. It is especially suitable for users in narrow workshops and frequently moving processing sites.
| Model | MAIS Y1-350 |
| Blade diameter | Ø350 – Ø400 mm |
| Effective processing size | 3200 × 2000 mm |
| Worktable flip angle | 0 – 85° |
| Head rotation angle | 0°, 90° |
| Maximum saw blade lifting stroke | 230 mm |
| Maximum cutting thickness | 0 – 80 mm |
| Main motor power | 11 kW |
| Overall machine dimensions (L × W × H) | 5600 × 3000 × 2200 mm |
| Total weight | 4500 kg |
Automatic Bridge Saw MAIS Y1-350H
MAIS Y1-350H adopts microcomputer control, automatic return to origin and tool setting, water-cooled spindle motor and other technologies. The machine head can rotate 90 degrees, the frame has a feeding window, and the workbench is equipped with a hydraulic lifting feeding roller. It is simple and convenient to operate, especially suitable for plate cutting of recycled quartz stone and microcrystalline stone production lines. And the structure is integrated, with the advantages of small size, easy transportation, installation and debugging.
| Model | MAIS Y1-350H |
| Blade diameter | Ø350 – Ø400 mm |
| Effective processing size | 3300 × 1750 mm |
| Blade axis rotation | 0°, 90° |
| Blade lifting stroke | 250 mm |
| Cutting thickness | 0 – 80 mm |
| Inner hole size of plate feed | 1950 mm |
| Gas working pressure | 0.4 – 0.6 MPa |
| Main motor power | 15 kW |
| Overall machine dimensions (L × W × H) | 5600 × 3100 × 2300 mm |
| Total weight | 4500 kg |
Automatic Bridge Saw MAIS Y2-350
MAIS Y2-350 integrated automatic bridge saw
The cutter head of the machine can rotate 90° and tilt 45°.
The worktable can rotate 0~360° horizontally and flip 0~85° vertically.
It adopts an integrated structure, which has the advantages of small size, easy installation and movement, and simple operation.
| Model | MAIS Y2-350 |
| Blade diameter | Ø350 – Ø400 mm |
| Effective processing size (L × W) | 3200 × 2000 mm |
| Worktable flip angle | 0 – 85° |
| Head rotation angle | 0°, 90° |
| Worktable rotation angle | 0 – 360° |
| Tool inclination angle | 0 – 45° |
| Maximum saw blade lifting stroke | 250 mm |
| Maximum cutting thickness | 0 – 80 mm |
| Main motor power | 15 kW |
| Overall dimensions (L × W × H) | 5600 × 2950 × 2250 mm |
| Total weight | 5800 kg |
Automatic Bridge Saw MAIS Y3-350
MAIS Y3-350 integrated automatic bridge saw
The machine adopts microcomputer control, infrared knife setting, hydraulic transmission,
The worktable can rotate 0~360° horizontally and flip 0~85° vertically;
It adopts an integrated structure, easy installation and debugging, high precision, and easy operation.
| Model | MAIS Y3-350 |
| Blade diameter | Ø350 – Ø400 mm |
| Effective processing size | 3200 × 2000 mm |
| Blade lifting stroke | 230 mm |
| Worktable flip angle | 0 – 85° |
| Worktable rotation angle | 0 – 360° |
| Main motor power | 15 kW |
| Cutting thickness | 0 – 80 mm |
| Overall dimensions (L × W × H) | 5600 × 4200 × 2280 mm |
| Total weight | 6000 kg |
Automatic Bridge Saw MAIS Y8-350
MAIS Y8-350 integrated automatic bridge saw
The blade head rotates 90° and has a 45° inclination. The worktable has two types: non-rotating and rotating, and can be flipped vertically from 0 to 85°;
It adopts an integrated structure, which is small in size and occupies a small area, and is particularly space-saving;
The machine head and beam travel use linear guides and servo drive control, which makes the travel speed faster, more accurate, and more stable;
The water-cooled high-power main motor has reliable protective cooling and stable and fast cutting;
The human-machine operation interface is simple, and the orthogonal cutting module and chamfering processing module automatically complete the processing; with the electronic handwheel fine-tuning the tool, fine processing is easier.
It is especially suitable for marble and artificial stone slab processing.
| Model | MAIS Y8-350 |
| Blade diameter | Ø350 – Ø400 mm |
| Workbench rotation | Optional |
| Cutter head rotation | 0 – 90° |
| Cutter head inclination | 0 – 45° |
| Maximum tool lifting stroke | 0 – 240 mm |
| Effective cutting size | 3200 × 2000 mm |
| Cutting thickness | 0 – 80 mm |
| Main motor power | 11 kW |
| Total power | 15 kW |
| Machine dimensions (L × W × H) | 5600 × 4200 × 2280 mm |
| Total weight | 3500 kg |
| Optional function – Workbench rotation | 0° / 45° / 90° / 180° / 270° |
