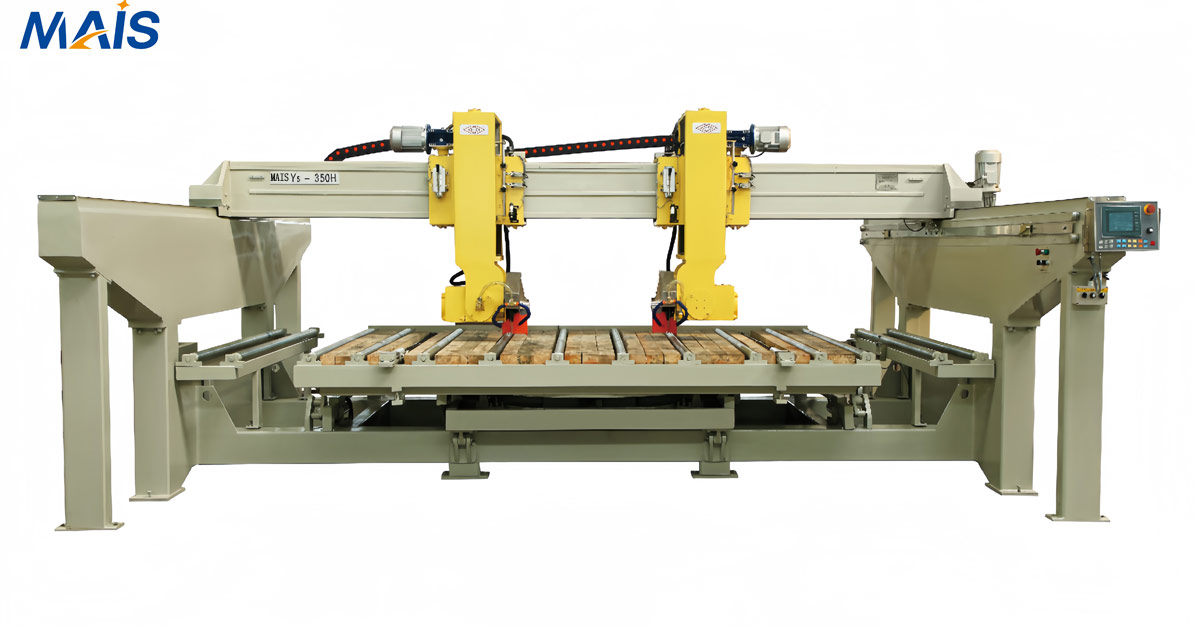

Double-head Bridge Saw MAIS Y5-350H
MAIS Y5-350H double-head bridge saw with microcomputer control, water-cooled spindle, and 0-90° rotating worktable. Perfect for efficient quartz and microcrystalline stone cutting.
Double-head bridge saw MAIS Y5-350H（MAIS Y5-350H）
MAIS Y5-350H integrated automatic bridge saw
The machine adopts microcomputer control and water-cooled spindle motor technology.
The worktable rotates 0-90 degrees in the horizontal direction;
The plate is sent to the worktable for processing through the feeding device.
The plate can be cut by a single or two heads.
It is especially suitable for online cutting of plates in supporting artificial quartz stone and microcrystalline stone production lines.
The machine has an integrated structure and has the advantages of simple operation, high cutting efficiency, small size, convenient transportation, installation and debugging.
Technical Parameter
| Model | MAIS Y5-350H |
| Blade diameter | Ø350～Ø400 mm |
| Effective processing size | 3250*1900/3550*2200 mm |
| Maximum tool lifting stroke | 240mm |
| Cutting thickness | 0～80 mm |
| Gas working pressure | 0.4-0.6Mpa |
| Inner hole size of feed plate | 1950*2300 mm |
| Feed plate speed | 1500～30000 mm/min |
| Main motor power | 15 KW+15KW |
| Machine Dimension (L*W*H) | 5750*4600*2500 mm |
| Total weight | 6500 KG |
MAIS Y5-350H-Detail
